    E5463 Waterproof Brushless Motor 160KV 24V BLDC Motor For Water Motorcycle

    Ask Lasest Price
    Brand Name : SECORE
    Model Number : BLE-5463
    Certification : CE Rohs
    Price : Negotiated The Price
    Payment Terms : T/T
    Supply Ability : 30000PCS / month
    Delivery Time : 10-12 working days
    • Product Details
    • Company Profile

    E5463 Waterproof Brushless Motor 160KV 24V BLDC Motor For Water Motorcycle

    E5463 Waterproof Motor For Water Motorcycle 160KV 24V BLDC Motor With Propeller


    Features:


    Motor Model numberBLE-5463Dimension54*63mm
    ( diameter * length )
    Motor namewaterproof motorRotoroutrunner rotor
    Motor typebrushless motorProtection levelIP68
    Voltage Range24V-36VRated Current12-15A
    KV value160kvrotation thrust5KG-8KG
    Prepeller diameter80-115mmfeatureanti-water, anti-sand, anti-crystallization
    Thrust7KGrotationcw / ccw
    Hole Distance35mmScrew Holes4*M4 6mm
    Prepeller/Screw diameter80-115mmopional existing prepeller95mm

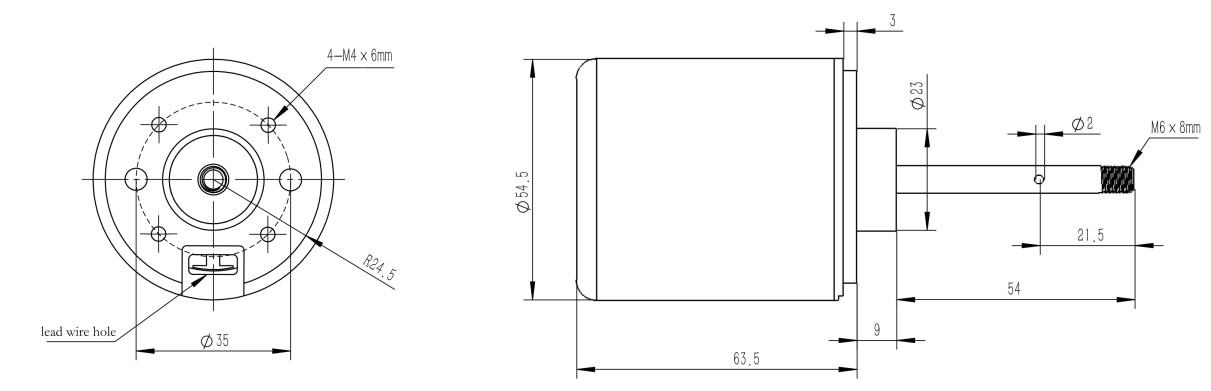

    Outline dimensions:

    E5463 Waterproof Brushless Motor 160KV 24V BLDC Motor For Water Motorcycle


    Typical application:

    Provide Solutions of Waterproof Motors For Underwater salvage, underwater construction, on-water sports devices etc.


    Such as swimming pool cleaner motor, wave creating motor, hydrofoil wave motor, underwater scooter motor, water scooter motor, electric waterproof motor, 1 hp waterproof electric motor, 5 hp waterproof electric motor, 20 hp waterproof motor, water vehicle motor and so on. Contact us to tailor your motor.


    E5463 Waterproof Brushless Motor 160KV 24V BLDC Motor For Water Motorcycle


    Waterproof technology


    Secore Technology has been developed Waterproofing brushless outer rotor motor for underwater devices include saltwater, using the cut-edge patented technology, stator potting waterproofing process, and the cut-edge patented technology, wholly sealed motor.


    The potting waterproofing process is to seal the stator of the motor through a waterproof glue tank, but there is a gap between the stator and the rotor of the motor, water can enter, so it cannot prevent salt crystallization and sediment. The sealing process is that after the entire motor is waterproofed, it is sealed up, only the shaft is rotating, so that it can prevent salt crystallization and sediment.
