6v 12v 25mm Metallic Gearbox Motor Sweeper Shredder Motor With Reducer

Secore Motor Brushed Spur Gear Motor DC2418-25GB Main features:

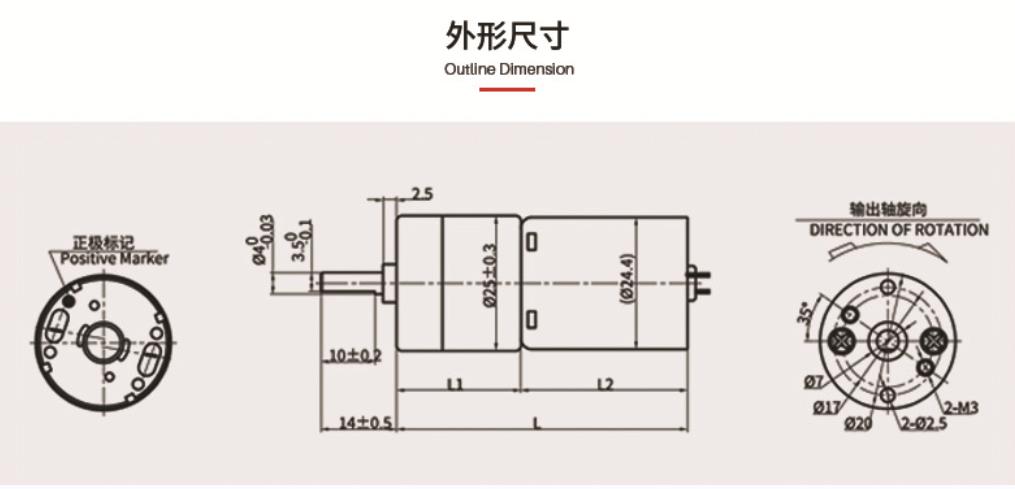

Gear Motor Size: Φ25*L39mm;

Voltage: 6V~36V, as per request;

Speed: 5rpm ~ 500rpm;

Application: sweeper, shredder, robot etc

What are main parameters for selecting an electric motor?

Generally select the appropriate power, voltage, speed, torque and body size according to the actual situation (load, structure size, etc.), and then match the brushless drive according to the specific parameters of the selected DC brushless motor.

The parameters are: DC power supply voltage, rated output power, rated load torque, rated operating speed and the direction of rotation of the brushless DC motor: clockwise, counterclockwise or both are required, and the continuous duty cycle of the motor can be in accordance with a certain time operation, the environment that the DC brushless motor is adapted to: indoor, outdoor, ocean, high pressure, high temperature, high humidity, corrosive gas, the structure of the flange has two types of structure, square and round, and the length of the body .

1. Select the correct voltage, expected performance of the motor
2. Confirm the peak current of the brushless drive.
3. Define the working environment (such as temperature, high humidity, etc.).
4. The requirement of power supply insulation.
5. The outer diameter and height of the motor, the diameter of the output shaft, whether it needs to be equipped with a reducer and other related parts.

Shenzhen Secore Technology Co.,ltd,is a professional micro-motor manufacturer, with 7 years domestic and overseas market experience with R&D, production and sales of brushless DC motors, permanent magnet DC motors and gear motors, which are widely applied to various industries like auto parts, household appliances, personal care, high-end equipment, intelligent home, office, medical equipment, power tools, robots, and so on.

We implementing strictly ISO 9001, ISO/TS 16949 and ISO 14001 Management Systems. Our company has first-class R&D and manufacturing team. 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.

We adhere to the improved technology, continuous quality improvement, technology and management at the forefront of peers, with automated equipment, simplified and reliable design, and professional production technology, to ensure customer quality, price, delivery and service demand. We uphold the integrity of management, unremitting self-improvement, social commitment spirit, and development as our long-term commitment to micro motor industry. Contact us now for more information.
