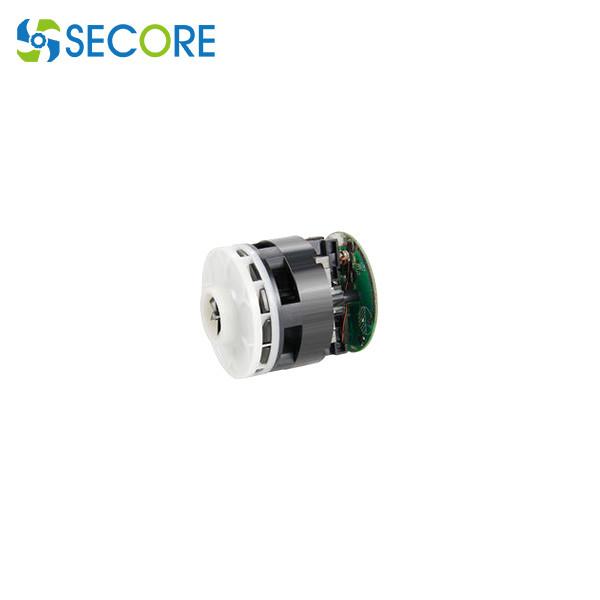

High Suction Vacuum Cleaner 100000RPM BLDC Motor With Light Weight
Main features:
Voltage:24(optianal)
Power:350w
Speed:100000±10%
High Speed, High Efficiency, Long Life, Light Weight, Customizable
| size | Φ70*68mm |
| Shaft Diameter ( customizable ) | Φ5mm |
| Rated Voltage | 24v dc |
| Input Power at Max-efficiency | 350w |
| | |
| Speed rpm at max-efficiency | 100000±10%rpm |
| Max efficiency | 40% |
| Max air suction | 18Kpa |
| Max air flow | 24dm³/s |
| noise | 96db(100cm) |
| Life | ≥1000h |
The Vacuum Cleaner Motor (24V), designed for a famous company,
provides the ideal speed for sputum suction, with high speed, long
life, high efficiency and other advantages.
What we make?
Secore provides custom engineering to design gear motors utilizing
various motor type ( brushless DC motor, brushed DC motor,
universal motor and other motors),integrated control & sensing,
gear type(spur & helical, worm and planetary) and gearbox material
to meet customers' expectation.
TO BE TAILORED
1. Select the correct voltage, expected performance of the motor
2. Confirm the peak current of the brushless drive.
3. Define the working environment (such as temperature, high
humidity, etc.).
4. The requirement of power supply insulation.
5. The outer diameter and height of the motor, the diameter of the
output shaft, whether it needs to be equipped with a reducer and
other related parts.
If there is no suitable specifications, it can be customized
according to actual needs.
Some of our customers:
Typical Application:
-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder, fax ( paper cutter ),
computer peripheral, lifting socket etc.
• breath machine, medical cleaning pump, medical ventilator,
medical bed, dental instrument, surgical robot etc
- Power tool and fitness equipment
• Electric screwdriver, Electric hydraulic pliers, Electric
scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler, tooth brush,
vibration, rubdown machine, foot grinder, facial beauty equipment,
eyebrow tweezer, electric threading knife
• Blender, sweeper, window cleaner, small household appliances
