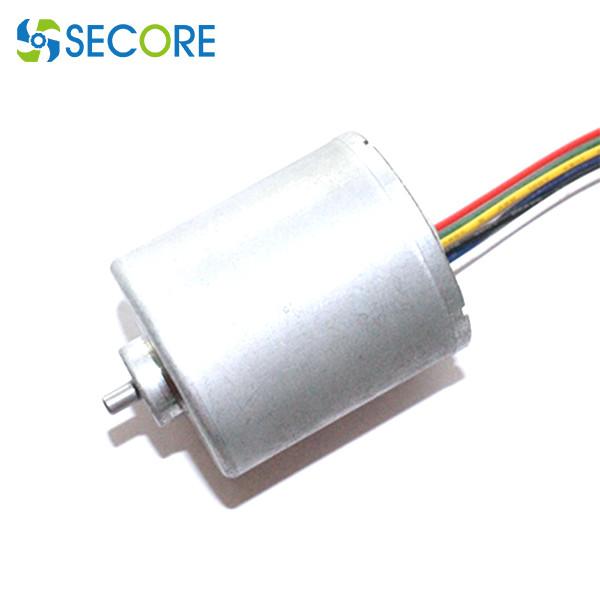

Scarcely Noise 15W Brushless Dc Electric Motor For Medical Air Pump
Main features:
Size: φ36.0* 30.0mm
Built-in driver
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Product discription: Brushless DC motor, brushless ventilator
motor, high-power brushless DC motor, high-speed permanent magnet
brushless motor
What is brushless motor?
The brushless DC motor is composed of the motor body and the
driver. The brushless DC motor uses Hall sensors to replace the
carbon brush commutator. NdFeB is used as the permanent magnet
material of the rotor. Compared with the general traditional DC
motor, the performance of the brushless DC motor has great
advantages, is the most ideal speed-regulating motor today.
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
OPERATING
RANGE | RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| r/min | A | r/min | A | g.cm | W | g.cm | A |
| BLS3630I-V1 | 8V~16V | 12V | 5817 | 0.249 | 4882 | 0.638 | 138.1 | 6.507 | 657.4 | 3.456 |
| BLS3630I-V2 | 8V~26V | 18V | 7526 | 0.209 | 6171 | 0.957 | 183 | 11.584 | 1016.8 | 4.366 |
| BLS3630I-V3 | 8V~26V | 24V | 8872 | 0.184 | 7364 | 0.872 | 191.3 | 14.451 | 1125.6 | 4.234 |
More models for further reference:
| Model # | BLS2413O | BLS2713O | BLS2717O | BLS2719O | BLS2717O | BLS4225O | BLS4548F | BLS5550F |
| Type | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor |
| Size (mm) | Φ24.0*H13 | Φ27.0*H13 | Φ27.0*H17 | Φ27.0*H19 | Φ37.0*H17 | Φ42.0*H26 | Φ45.4*H55 | Φ55.0*52.0 |
| Voltage (V) | 5~26VDC | 5~26VDC | 5~26VDC | 5~26VDC | 8~26VDC | 8~26VDC | 8~25.2VDC | 8~25.2VDC |
| RPM | 10,000~20,000 | 6000~15,000 | 5000~30,000 | 5000~30,000 | 5000~30,000 | 5000~40,000 | 30,000~100,000 | 30,000~100,000 |
| Power (W) | 20W | 20W | 35W | 45W | 65W | 130W | 120W | 250~300W |
| Weight(g) | 50g | 55g | 60g | 65g | 70g | 125g | 100g | 150g |
Typical
application | sweeper,
vacuum cleaner | sweeper,
drive wheel chair | small power window cleaner,
vacuum cleaner | high power sweeper,
window cleaner | high power window cleaner | Hand-held vacuum cleaner | High-speed handheld vacuum fan | High-speed handheld vacuum fan |
| Model # | BLS2418I | BLS2419I | BLS2430I | BLS2838I | BLS3640I | BLS2413O | BLS4220O |
| Type | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | outer BLDC Motor | outer BLDC Motor |
| Size (mm) | Φ24.4*H18.1 | Φ24.4*H19.0 | Φ24.4*H30.8 | Φ28.0*H37.6 | Φ36.0*H40.0 | Φ24.0*H13.0 | Φ40.5*H21.0 |
| Voltage (V) | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 100~240VDC |
| RPM | 3000~10,000 | 3000~12,000 | 2000~12,000 | 3000~15,000 | 3000~10,000 | 3000~25,000 | 6000~25,000 |
| Power (W) | 3~5W | 5W | 6~10W | 10~15W | 20~30W | 15~25W | 130W |
| Weight(g) | 30g | 35g | 50g | 75g | 150g | 50g | 130g |
Typical
application | electric razor,
electric hair trimmer, hair curler |
electric hair trimmer, hair curler | electric razor,
electric hair trimmer | electric razor,
electric hair trimmer | pet electric hair trimmer | household hair dryer | hair dryer |
TO BE TAILORED
♦ Customized voltage, motor performance
♦ Customized mounting, shaft dimension, and lead configuration
♦ EMI/RFI suppression circuit
♦ Overload protection, thermal protection
♦ High temperature and waterproof option
♦ Integrated gearbox, controller, encoder and brake
If there is no suitable specifications, it can be customized
according to actual needs.
About us
Shenzhen Secore Technology Co.,Ltd is professionally engaged in
various of motors such as brushless dc motors, high voltage brushed
dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average
sales value 40 million dollars.
some of Our customers
Typical Application:
-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer
- Power tool and fitness equipment
• Electric screwdriver, Electric hydraulic pliers, Electric
scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
