Ball Bearing Speed Reduction Motor, Metal Gearbox Dc Planet Motor
With Shielding Cover
Main features:
Motor type: Brushed DC gear motor
Gear type: planetary gearbox
Diameter: Gearbox: 32mm; DC motor:28mm
Gear ratio: 1:3.7 ~1:596
No load current: 150mA; 85mA
Nominal current: 530mA; 250mA
No load speed: 6500rpm
Nominal speed: 5290rpm; 5250rpm
Permissible load range: 0.3N.m ~ 3.0N.m for S1 duty cycle
Nominal power: 2.8W; 8W
IP rating: up to IP68
Transmission noise: low and quiet
Metal drive shaft: can be customized
Motor name: gear reducer motor, small DC motor with gearhead, micro
reducer

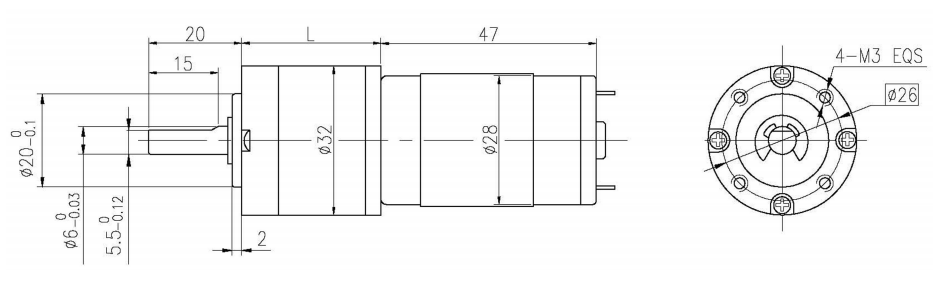

Gear motor size:
Motor Technical parameters:
| Model | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Output power | Rated current | Stall torque | Stall current |
| | VDC | RPM | mA | RPM | mN.m | W | mA | mN.m | A |
| DC2847-1265 | 12 | 6500 | 150 | 5290 | 7.6 | 4.2 | 530 | 23 | 1.6 |
| DC2847-2465 | 24 | 6500 | 85 | 5250 | 7.3 | 4.0 | 250 | 23 | 0.8 |
Gear motor technical parameters for DC2847-1265:
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 35 | 51 | 71 | 100 | 139 | 189 | 264 | 354 | 495 | 596 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Length (L) mm | 25.7 | 25.7 | 32.8 | 32.8 | 32.8 | 32.8 | 39.7 | 39.7 | 39.7 | 39.7 | 46.6 | 46.6 | 46.6 | 46.6 | 46.6 |
| No-load speed rpm | 1756 | 1255 | 464 | 342 | 241 | 186 | 127 | 92 | 65 | 47 | 34 | 26 | 18 | 13 | 11 |
| Rated speed rpm | 1426 | 1021 | 378 | 278 | 196 | 151 | 104 | 75 | 53 | 38 | 28 | 21 | 15 | 11 | 8.9 |
| Rated torque N.m | 0.025 | 0.035 | 0.086 | 0.12 | 0.17 | 0.22 | 0.28 | 0.39 | 0.55 | 0.77 | 0.93 | 1.3 | 1.7 | 2.4 | 2.9 |
| Max permissible load in a short time N.m | 1 | 1 | 3.5 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 | 9 |
Gear motor technical parameters for DC2847-2465:
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 35 | 51 | 71 | 100 | 139 | 189 | 264 | 354 | 495 | 596 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Length (L) mm | 25.7 | 25.7 | 32.8 | 32.8 | 32.8 | 32.8 | 39.7 | 39.7 | 39.7 | 39.7 | 46.6 | 46.6 | 46.6 | 46.6 | 46.6 |
| No-load speed rpm | 1752 | 1255 | 464 | 342 | 241 | 186 | 127 | 92 | 65 | 47 | 34 | 26 | 18 | 13 | 11 |
| Rated speed rpm | 1415 | 1014 | 375 | 276 | 194 | 150 | 1.3 | 76 | 53 | 38 | 28 | 21 | 15 | 11 | 8.8 |
| Rated torque N.m | 0.024 | 0.034 | 0.083 | 0.11 | 0.16 | 0.21 | 0.27 | 0.38 | 0.53 | 0.74 | 0.91 | 1.2 | 1.7 | 2.3 | 2.8 |
| Max permissible load in a short time N.m | 1 | 1 | 3.5 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 | 9 |
Dimension:
Motor diameter: 28mm ( customizable )
shaft length: 20 mm ( customizable )
shaft diameter: 6mm ( customizable )
Provide motor size, lead requirement, working voltage, no-load
conversion, no-load current, load, stall current, etc, TO TAILOR
YOUR MOTOR.
About us
Shenzhen Secore Technology Co.,Ltd is professionally engaged in
various of motors such as brushless dc motors, high voltage brushed
dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average
sales value 40 million dollars.
Typical Application:
| Embossing machine motor | slow juicer motor | roll door motor |
| printing machine motor | robot cleaner motor | slide door motor |
| oven gear motor | door motor | PTZ camera motor |
| telescopic rod motor | fan motor | lawn mower motor |
| massage chair motor | curtain motor | medical robot motor |
