High Quality Mini 3 Phase Brushless DC Planetary Gear Motor For
Electric Valve
12V, 24V Mini BL DC Planetary Gear Motor
Model: BLD2245
Voltage: 6 ~ 400V DC
Rated torque up to 1N.m for continuous running
Optional components: encoder; brake; connector
Customized shaft dimensions and technical specifications are
available upon requested.

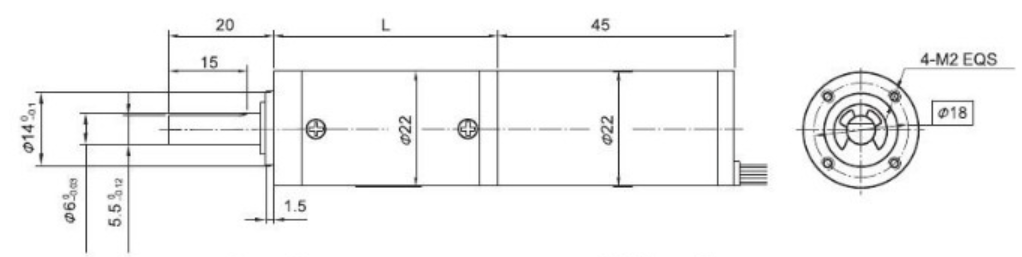

Dimension:
Brushless motor technical data:
| Model | Number of Poles | Number of phase | Rated voltage VDC | No-load speed r/min | Rated speed r/min | Rated torque mN.m | Output power W | Peak Torque | Peak current A | Line to line
resistance ohms | Line to line
inductance
mH |
| BLD2245-2470 | 8 | 3 | 24 | 7000 | 4600 | 8 | 3.8 | 21 | 1.1 | 23 | 6.2 |
Brushless planetary gear motor technical data:
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
| Length mm | 24.4 | 24.4 | 33 | 33 | 31 | 41.5 | 41.5 | 41.5 | 41.5 | 49.8 | 49.8 | 49.8 |
| No-load speed rpm | 1887 | 1351 | 500 | 368 | 259 | 137 | 99 | 70 | 50 | 37 | 27 | 19 |
| Rated speed rpm | 1240 | 888 | 329 | 242 | 170 | 90 | 65 | 46 | 33 | 24 | 17 | 12 |
| Rated torque N.m | 0.027 | 0.037 | 0.091 | 0.12 | 0.17 | 0.3 | 0.41 | 0.58 | 0.8 | 1 | 1 | 1 |
| Max permissible load in a short time N.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 |
More motors:
Typical Application:
Industrial automation: conveyers, rotational operation, automatic gate system, solar
tracker etc.
Household electrical appliances: lawn mower, ice crusher, stair lift, air-condition, masticating
juicer, food waste disposer, kitchen appliances, etc.,
The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
Recreational equipment: swimming pool cleaners, pool cover systems,
golf trolley, amusement machines and other places of entertainment,
etc.
Office automation: automatic doors, elevator doors, roller shutter, curtains, punch
machines, financial instruments, etc.
Medical and health-care equipment: various of health care equipment, medical equipment, etc.
