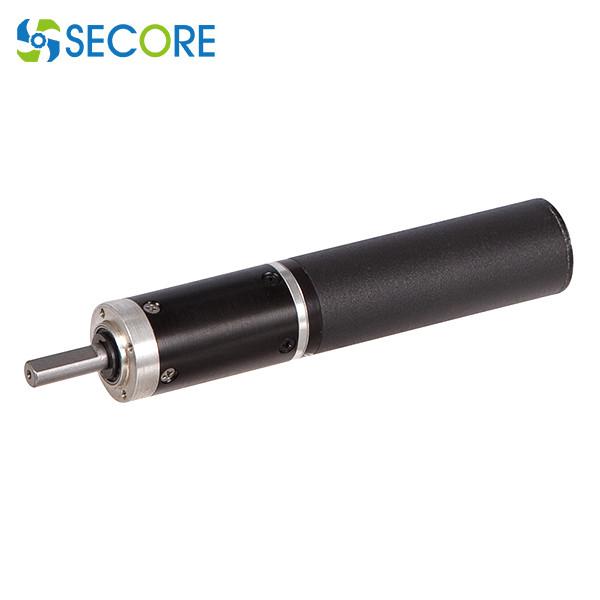

    Planetary 22mm Brushless Motor 8 Pole, 12V 24V 36V 48V Three Phase Brushless Motor

    Ask Lasest Price
    Brand Name : SECORE
    Model Number : BLD2270
    Certification : CE ROHS
    Price : Negotiated The Price
    Payment Terms : T/T, D/A
    Supply Ability : 100000pcs per month
    Delivery Time : 15-18 working days
    • Product Details
    • Company Profile

    Planetary 22mm Brushless Motor 8 Pole, 12V 24V 36V 48V Three Phase Brushless Motor

    22mm Brushless Planetary Motor 8 Pole 3 Phase 12V 24V 36V 48V With 70mm Gearbox


    Key performance features:


    Motor typeBrushless DC motor
    Gearbox typePlanetary
    Pole8
    Phase3
    DiameterGearbox: 22mm; DC motor: 22mm
    Nominal voltage12V/24V DC or customized
    Gear ratio1:3.7 ~1: 51
    Peak current1.5A
    No load speed6000rpm
    Nominal speed3500rpm
    Permissible load range0.1-01.0N.m for S1 duty cycle
    Rated power8W

    Dimension:


    Motor diameter: 22mm ( customizable )

    Motor length: 70 mm ( customizable )

    shaft diameter: 6mm ( customizable )

    Gearbox dimension: diameter 22mm * length optional 22.4mm / 33mm / 41.5mm ( customizabable )

    Provide motor size, lead requirements, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.



    Brushless motor technical parameter:


    ModelNumber of PolesNumber of phaseRated voltage VDCNo-load speed r/minRated speed r/minRated torque mN.mOutput power WPeak Torque
    mN.m
    Peak current ALine to line
    resistance ohms
    Line to line
    inductance
    mH
    BLD2270832460003500228501.511.84.2

    Brushless motor with gearhead ( BLDC planetary Gear motor ) technical data:


    Reduction ratio3.75.214192751
    Number of gear trains112223
    gearbox Length mm24.424.433333341.5
    No-load speed rpm16171158429316222118
    Rated speed rpm94367625018413069
    Rated torque N.m0.0730.10.250.340.480.8
    Max permissible load in a short time N.m0.30.31.21.21.22.5

    UVWVccHaHbHcGND
    RedBrownBlackBlueYellowBrownRedGreen
    26AWG UL100728AWG UL1007


    How to select the suitable gear motor?


    1.Know your application requirements for your gear motor;

    Mounting space, Input power source as voltage, current, frequency, weight, life expectancy, speed, torque, operation environment etc.


    2. Select the proper motor;

    The gear type you are interested in, such as a universal, brushless DC, AC induction, or a permanent magnet gear motor


    3. Know the speed and torque requirements of the load to be driven

    To ensure your gear motor is the right size for your intended application, it’s vital to know your output speed, starting and running torque.
