5-24V 24mm brushless dc planetary gear motor applied in cordless
drill
Main features:
Size: φ24.0* 36.0mm-24.0*57mm
Built-in driver
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome

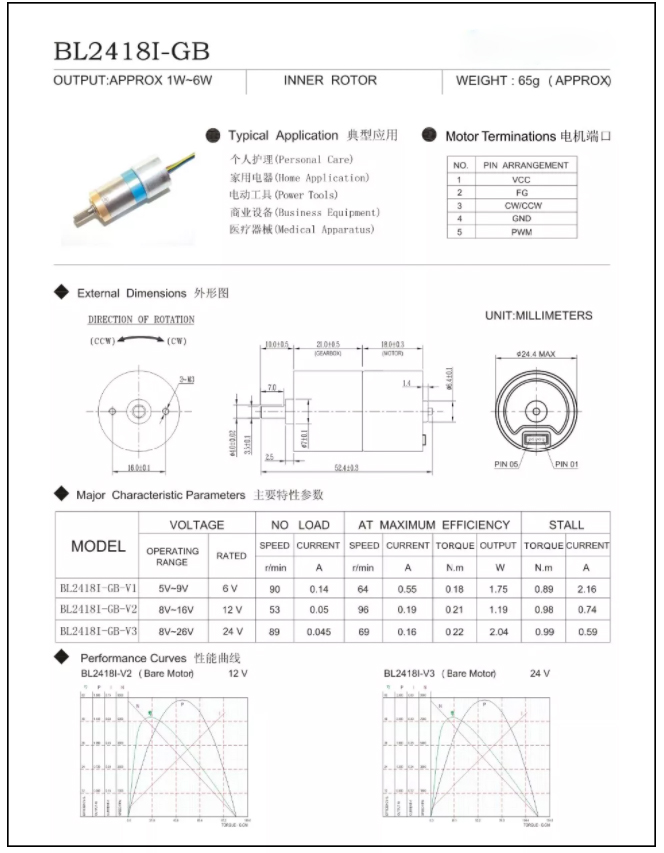

| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
OPERATING
RANGE | RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| r/min | A | r/min | A | N.m | W | N.m | A |
| BLS2418I-GB-V1 | 5V~9V | 6V | 90 | 0.14 | 64 | 0.55 | 0.18 | 1.75 | 0.89 | 2.16 |
| BLS2418I-GB-V2 | 8V~16V | 12V | 53 | 0.05 | 96 | 0.19 | 0.21 | 1.19 | 0.98 | 0.74 |
| BLS2418I-GB-V3 | 8V~26V | 24V | 89 | 0.045 | 69 | 0.16 | 0.22 | 2.04 | 0.99 | 0.59 |
More models for further reference:
| Model # | BLS2413O | BLS2713O | BLS2717O | BLS2719O | BLS2717O | BLS4225O | BLS4548F | BLS5550F |
| Type | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor |
| Size (mm) | Φ24.0*H13 | Φ27.0*H13 | Φ27.0*H17 | Φ27.0*H19 | Φ37.0*H17 | Φ42.0*H26 | Φ45.4*H55 | Φ55.0*52.0 |
| Voltage (V) | 5~26VDC | 5~26VDC | 5~26VDC | 5~26VDC | 8~26VDC | 8~26VDC | 8~25.2VDC | 8~25.2VDC |
| RPM | 10,000~20,000 | 6000~15,000 | 5000~30,000 | 5000~30,000 | 5000~30,000 | 5000~40,000 | 30,000~100,000 | 30,000~100,000 |
| Power (W) | 20W | 20W | 35W | 45W | 65W | 130W | 120W | 250~300W |
| Weight(g) | 50g | 55g | 60g | 65g | 70g | 125g | 100g | 150g |
Typical
application | sweeper,
vacuum cleaner | sweeper,
drive wheel chair | small power window cleaner,
vacuum cleaner | high power sweeper,
window cleaner | high power window cleaner | Hand-held vacuum cleaner | High-speed handheld vacuum fan | High-speed handheld vacuum fan |
| Model # | BLS2418I | BLS2419I | BLS2430I | BLS2838I | BLS3640I | BLS2413O | BLS4220O |
| Type | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | outer BLDC Motor | outer BLDC Motor |
| Size (mm) | Φ24.4*H18.1 | Φ24.4*H19.0 | Φ24.4*H30.8 | Φ28.0*H37.6 | Φ36.0*H40.0 | Φ24.0*H13.0 | Φ40.5*H21.0 |
| Voltage (V) | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 100~240VDC |
| RPM | 3000~10,000 | 3000~12,000 | 2000~12,000 | 3000~15,000 | 3000~10,000 | 3000~25,000 | 6000~25,000 |
| Power (W) | 3~5W | 5W | 6~10W | 10~15W | 20~30W | 15~25W | 130W |
| Weight(g) | 30g | 35g | 50g | 75g | 150g | 50g | 130g |
Typical
application | electric razor,
electric hair trimmer, hair curler |
electric hair trimmer, hair curler | electric razor,
electric hair trimmer | electric razor,
electric hair trimmer | pet electric hair trimmer | household hair dryer | hair dryer |
TO BE TAILORED
♦ Customized voltage, motor performance
♦ Customized mounting, shaft dimension, and lead configuration
♦ EMI/RFI suppression circuit
♦ Overload protection, thermal protection
♦ High temperature and waterproof option
♦ Integrated gearbox, controller, encoder and brake
If there is no suitable specifications, it can be customized
according to actual needs.
About us
Shenzhen Secore Technology Co.,Ltd is professionally engaged in
various of motors such as brushless dc motors, high voltage brushed
dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average
sales value 40 million dollars.
Typical Application:
-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer
- Power tool and fitness equipment
• Electric screwdriver, Electric hydraulic pliers, Electric
scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
