Small Size Internal Rotor Brushless Motor With Super Long Life Low Noise For Solar Fan

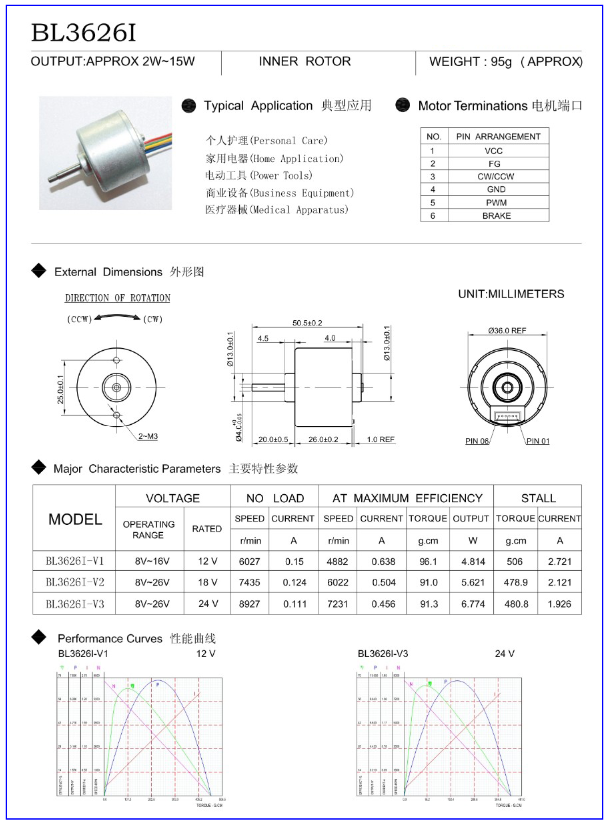

Specification:

• Type: brushless DC motor
• Construction: permanent magnet
• Motor terminations: VCC/FG/CW/CCW/GND/PWM/brake
• Output power:2-15W
• Voltage: 12V
• Diameter of motor housing: 36mm
• Length of motor housing: 26mm
• Diameter of the output shaft: 4mm
• Long lifetime
• Low noise, low EMI

TO BE TAILORED

Generally select the appropriate power, voltage, speed, torque and body size according to the actual situation (load, structure size, etc.), and then match the brushless drive according to the specific parameters of the selected DC brushless motor.

1. Voltage, current, speed and torque.
2. Shape of shaft: "D" "Round" "Flat" "Hexagon Axis" "Square axis", shaft dimension
3. Bearing: ball bearing, oil bearing
4. Materials of shell: plastic metal etc
6. Optional equip with reducer, braker, encoder, controller, gearhead, driver etc

If there is no suitable specifications, it can be customized according to actual needs.

Some of the Typical Application

Provide Solutions For Office Equipments, Air Purification Systems, Water Treatment Systems, Medical Equipments, Logistic Transmission Systems, Mechanical Equipments, Solar Tracking Equipments

Shenzhen Secore Technology Co.,ltd,is a professional micro-motor manufacturer, with 7 years domestic and overseas market experience with R&D, production and sales of brushless DC motors, permanent magnet DC motors and gear motors, which are widely applied to various industries like auto parts, household appliances, personal care, high-end equipment, intelligent home, office, medical equipment, power tools, robots, and so on.

We implementing strictly ISO 9001, ISO/TS 16949 and ISO 14001 Management Systems. Our company has first-class R&D and manufacturing team. 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.

We adhere to the improved technology, continuous quality improvement, technology and management at the forefront of peers, with automated equipment, simplified and reliable design, and professional production technology, to ensure customer quality, price, delivery and service demand. We uphold the integrity of management, unremitting self-improvement, social commitment spirit, and development as our long-term commitment to micro motor industry. Contact us now for more information.
