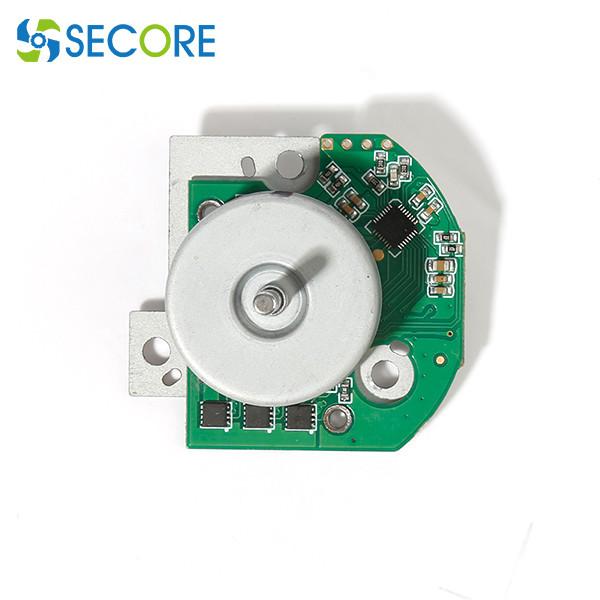

    14.4V 27mm*13mm Outer Rotor BLDC Motor Low Noise Explosion Proof DC Brushless

    Ask Lasest Price
    Brand Name : SECORE
    Model Number : BLS2713O
    Certification : CE ROHS
    Price : Negotiated The Price
    Payment Terms : T/T, D/A
    Supply Ability : 100000pcs per month
    Delivery Time : 15-18 working days
    • Product Details
    • Company Profile

    14.4V 27mm*13mm Outer Rotor BLDC Motor Low Noise Explosion Proof DC Brushless

    14.4V Φ27mm*13mm Customized Low Noise Explosion-Proof Outer Running BLDC Sweeper Motor


    Parameters:


    Size: 27.0mm* 13.0mm ( diameter * length )

    Built-in driver

    Long life: 10000hrs Min.

    FG speed feedback signal

    PWM pulse wide speed range

    CW and CCW

    Low EMC

    MODELVOLTAGENO LOADAT MAXIMUM EFFICIENCYSTALL
    OPERATING
    RANGE
    RATEDSPEEDCURRENTSPEEDCURRENTTORQUEOUTPUTTORQUECURRENT
    r/minAr/minAg.cmWg.cmA
    BLS2713O-V18V-15V12V167720.191137520.85153.77.6297.63.812
    BLS2713O-V28V-26V18V170130.122141260.58355.58.2323.32.823
    BLS2713O-V38V-26V24V175340.093145540.46455.58.4326.22.245

    Motor Terminations
    TerminationsI/OConditionsRemark
    GNDINGround(black wire ) Ground
    VccINDC12V±10%(red wire ) power supply
    FGVOHOUTMin4V at 5V 10KΩ pull up(yellow wire) this is the open collector output which can detect the rotation speed using the FG output according to the phase shift
    VOLMin0V Max0.6V
    FG currentMax 5mA
    FG pulse quantity12 pulse/round
    PWMInput voltageIN0~5Vblue wire
    VIHMin 2.0VMotor running
    VILMax 0.6VMotor stop
    PWM frequencyMax50KHzAdvise 15~25KHz
    CW/CCWInput voltageIN0~5Vwhite wire
    VIHMin 2.0VCCW
    VILMax 0.6VCW

    Parts of Typical Application:


    Power tool and fitness equipment

    • Electric screwdriver, Electric hydraulic pliers, Electric scissors

    • Fascia gun, massage chair, treadmill

    Household appliances and personal care

    • Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder

    • Blender, sweeper, window cleaner, small household appliances etc.

    Office apparatus and medical devices

    • Printer, Copier, Projector, Shredder, fax ( paper cutter), computer peripheral, lifting socket etc.

    • Sphygmomanometer, breath machine, cleaning pump, medical ventilator, medical bed, dental instrument etc.


    What is outrunner motor?


    An outrunner brushless motor is a type of brushless motor used in various applications, such as RC aircraft, drones, and electric vehicles. Unlike an inrunner motor, which has its rotor inside the stator, an outrunner motor has its rotor on the outside of the stator.

    The outrunner motor's rotor consists of a series of permanent magnet attached to the outer surface of a cylindrical shell. The stator is a stationary core with a series of wire-wrapped poles arranged in a circle around the rotor. When an electric current passes through the coils, it generates a magnetic field that interacts with the permanent magnets on the rotor, causing it to spin.

    Application: Outrunner brushless motors are preferred in many applications because they offer higher torque and lower RPM compared to inrunner motors. This makes them suitable for driving larger propellers and providing more efficient power transmission to the load. Additionally, outrunner motors are easier to cool, as the outer shell provides a larger surface area for heat dissipation.
