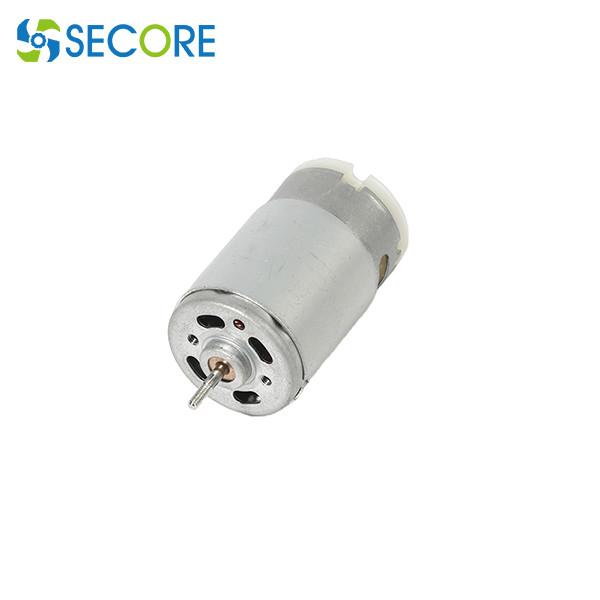

230v 18000rpm Hand Blender Brushed Dc Motor For Home Appliances Use
Main parameters:
Product name: Brushed DC motor
Working voltage: 100-240V
No load Sped: 7000-18500V
| MODEL | SPEC | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY |
| A | B | C | Operating
range | RATED | SPEED | CURRENT | POWER | SPEED | CURRENT | INPUT | TORQUE |
| r/min | A | W | r/min | A | W | m.Nm |
| DC2330 | 52 | 80 | 14 | 100V~240V | 230V | 7000 | 0.03 | 5.3 | 5000 | 0.1 | 21 | 27 |
| DC2336 | 58.5 | 90 | 17.5 | 100V~240V | 230V | 18500 | 0.12 | 19 | 10880 | 0.71 | 150 | 78.0 |

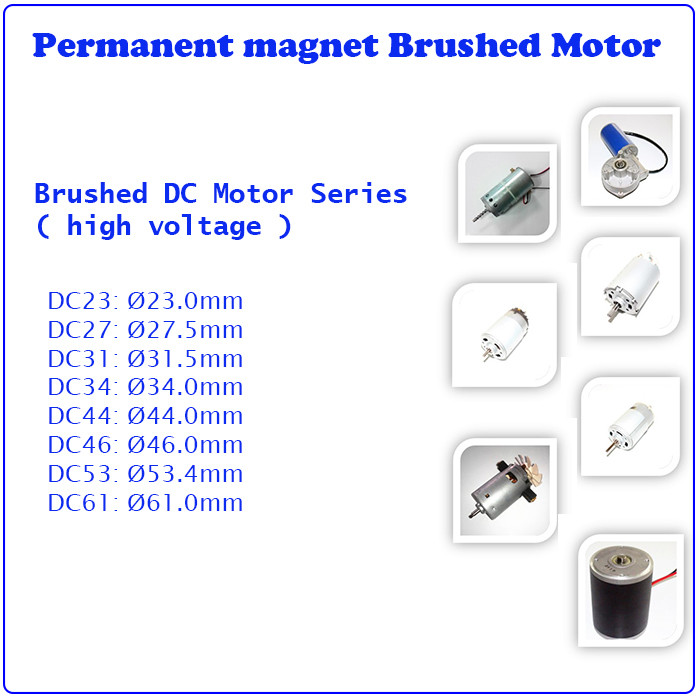

More models for further reference:
| Type | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | Brushed dc motor | Brushed dc motor | Brushed dc motor | Brushed dc motor | Brushed dc motor |
| Model # | BLS2418I;
BLS2430I; | BLS2838I;
BLS2847I; | BLS3626I;
BLS3630I;
BLS3640I;
BLS3650I;
BLS3657I; | BLS4260I;
BLS4275I; | DC2320;
DC2325;
DC2327;
DC2330;
DC2335; | DC2720;
DC2725;
DC2728;
DC2733;
DC2737;
DC2740; | DC3420;
DC3425;
DC3430;
DC3435;
DC3440;
DC3445; | DC4430;
DC4435;
DC4440;
DC4450;
DC4460;
DC4470; | DC5350;
DC5365;
DC5375;
DC5380;
DC53100; |
| Size (mm) | Φ24.4 | Φ28 | Φ36 | Φ42 | Φ338.3 | Φ44~46 | Φ52.0 | Φ63.0 | Φ77.0; Φ82.0 |
| Voltage (V) | 6~26 | 6~26 | 8~26 | 8~26 | 100~240 | 100~240 | 12~240 | 12~240 | 100~240 |
| RPM | 2000~12,000 | 4000~14,000 | 2000~10,000 | 2000~6000 | 5000~20,000 | 8000~16,000 | 2000~9000 | 2000~9000 | 2000~10,000 |
| Power (W) | 1~8 | 5~25 | 5~50 | 10~90 | 50~300 | 150~800 | 100~350 | 50~500 | 300~1200 |
Typical
application | air pump, antenna base station | power tool, home and office automation | power tool, home and office automation | electric shocker, power tool | power tool, home appliances | power tool, home appliances, medical device | shredder, household appliances | shredder, household appliances, financial appliances | mixer, shredder, medical devices |
What is permanent magnet brush DC Motor?
The permanent magnet brush DC motor is composed of a front cover, a
rear cover, a stator, a rotor, a fixed screw, a stator shell and a
permanent magnet. The motor is simple and precise, easy to
assemble, high in efficiency, long service life, small in size,
front and rear covers, The chip, outer diameter size and
performance requirements can be customized according to customer
needs.
If there is no suitable specifications, it can be customized
according to actual needs.
About us
Shenzhen Secore Technology Co.,Ltd is professionally engaged in
various of motors such as brushless dc motors, high voltage brushed
dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average
sales value 40 million dollars.
Typical Application:
-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer
- Power tool and fitness equipment
• Electric screwdriver, Electric hydraulic pliers, Electric
scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
