    Oil Expeller Brushed DC Worm Gear Motor , 50rpm Brushed DC Gear Motor

    Ask Lasest Price
    Brand Name : SECORE
    Model Number : DC5350-GB
    Certification : CE ROHS
    Price : Negotiated The Price
    Payment Terms : T/T, D/A
    Supply Ability : 100000pcs per month
    Delivery Time : 15-18 working days
    • Product Details
    • Company Profile

    Oil Expeller Brushed DC Worm Gear Motor , 50rpm Brushed DC Gear Motor

    220V 60Hz Brushed Worm Gear Motor With Low Speed 50rpm For Oil Expeller


    Main parameters:


    Model: DC5345 permanent magnet Gear Motor

    Weight: 1600g/pcs(approx.)

    Packing details: 10 pcs/CTN

    Work system: S3 40% on 20 min, off 30 min

    Shell Protection Grade: IP20

    Insulation Class: B Class


    Works for: JUICER,OIL MILL,NOODLE MAKER,FOOD PROCESSOR

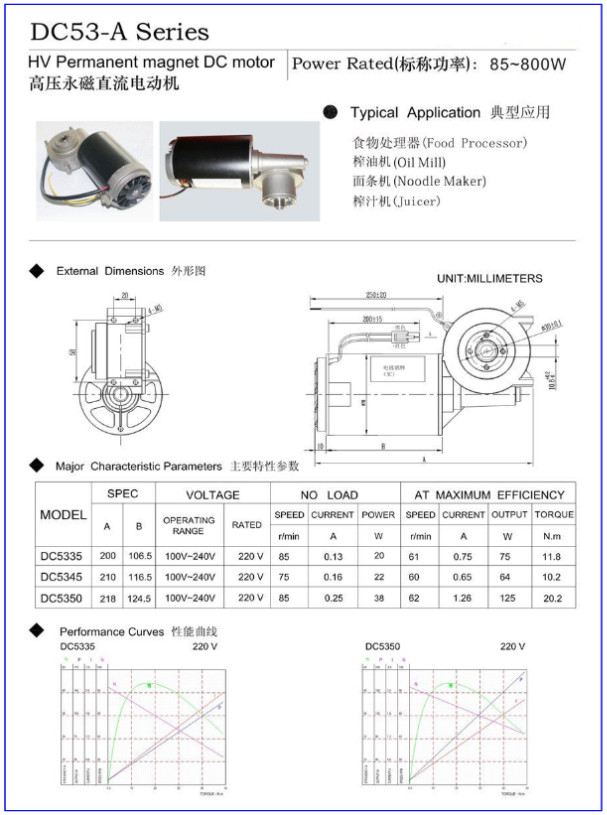

    MODELSPECVOLTAGENO LOADAT MAXIMUM EFFICIENCY
    ABOperating
    range
    RATEDSPEEDCURRENTPOWERSPEEDCURRENTOUTPUTTORQUE
    r/minAWr/minAWm.Nm
    DC5335200106.5100V-240V220V850.1320610.757511.8
    DC5345210116.5100V-240V220V750.1622600.656410.2
    DC5350218124.5100V-240V220V850.2538621.2612520.2

    Oil Expeller Brushed DC Worm Gear Motor , 50rpm Brushed DC Gear Motor

    The structure of the DC motor


    The DC motor is mainly composed of a stationary stator, a rotating rotor, and an end cap.

    The stator is composed of shell, bearing, magnetic shoe, and circlip.

    The rotor is composed of a washer, shaft gear, insulating sheet, iron core group, shaft, commutator, pressure-sensitive, and oil baffle.

    The end cap provided for the motor brush support consists of terminal blocks, end caps, elastic arms, carbon, and bearings.


    All characteristics are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.


    Motor designer-ANSOFT Finite element analysis

    Oil Expeller Brushed DC Worm Gear Motor , 50rpm Brushed DC Gear Motor

    Oil Expeller Brushed DC Worm Gear Motor , 50rpm Brushed DC Gear MotorOil Expeller Brushed DC Worm Gear Motor , 50rpm Brushed DC Gear Motor

    Oil Expeller Brushed DC Worm Gear Motor , 50rpm Brushed DC Gear Motor

    Advantage of ANSOFT electromagnetic software and dynamic simulation analysis:


    1. Optimize motor performance and efficiency
    2. Optimize the electromagnetic field distribution of the motor
    3. Reduce motor cogging torque, vibration and noise
    4. Significantly improve the reliability of the motor

    5. Optimize the use of motor materials to reduce weight and reduce costs

    6. Reasonable electromagnetic design and structural design to reduce noise and vibration

    About us


    Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.


    Oil Expeller Brushed DC Worm Gear Motor , 50rpm Brushed DC Gear MotorOil Expeller Brushed DC Worm Gear Motor , 50rpm Brushed DC Gear Motor


    Oil Expeller Brushed DC Worm Gear Motor , 50rpm Brushed DC Gear Motor

    Typical Application:


    -Office apparatus and medical devices

    • Printer, Copier, Projector, Shredder, fax ( paper cutter ), computer peripheral, lifting socket etc.

    • breath machine, medical cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc

    - Power tool and fitness equipment

    • Electric screwdriver, Electric hydraulic pliers, Electric scissors,

    • Fascia gun, massage chair, treadmill

    -Household appliances and personal care

    • Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment, eyebrow tweezer, electric threading knife

    • Blender, sweeper, window cleaner, small household appliances
