IP68 compact design Brush commutated permanent magnet DC motor for Low noise occasion

Main characteristics:

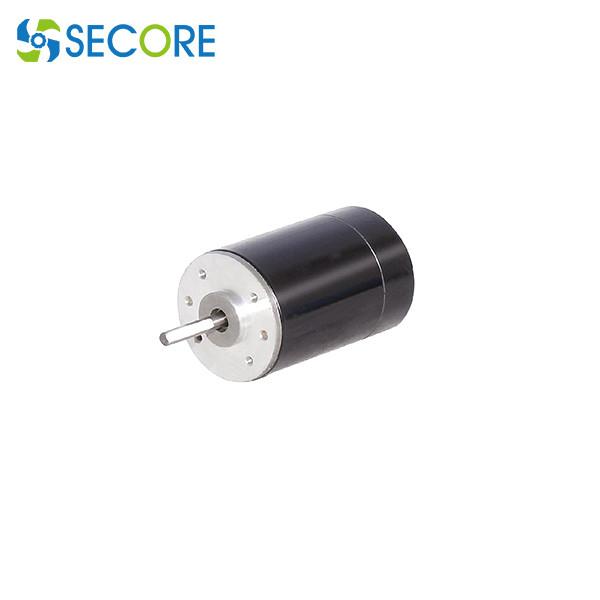

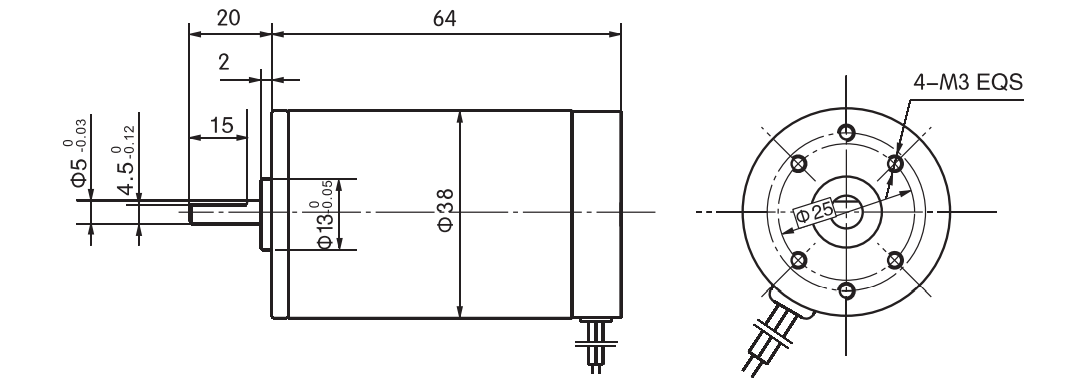

38mm diameter PMDC motor, totoally enclosed, proper for those occasions which requires low noise motor.

This brushed DC motor can be equipped with Planetary/Spur/Worm/Right Angle gearbox

Options

Planetary/Spur/Worm/Right Angle gearbox

Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning.

Power-on or power-off type electromagnetic brake

Capacitor& resistor for EMC suppression

Special shaft material and dimensions

Custom design; OEM products available

Features

Magnetic field generated by permanent magnets

Operation in both directions of rotation(CW & CCW)

Speeds up to 10,000 RPM possible

Advantageous torque with minimum space requirements

Suitable for continuous, reversing and intermittent operation

Can be installed in any mounting position

What we make?

Secore provides custom engineering to design gear motors utilizing various motor type ( brushless DC motor, brushed DC motor, stepper motors etc),integrated control & sensing, gear type(spur & helical, worm and planetary) and gearbox material to meet customers' expectation.

Brushed motors, also known as DC motors or commutator motors, have several applications in various fields. Some of the common applications of brushed motors are:

1. Automotive: Brushed motors are commonly used in automotive applications such as power windows, windshield wipers, and electric seats.

2. Robotics: Brushed motors are used in robotics for applications such as driving wheels, arms, and grippers.

3. Industrial: Brushed motors are used in industrial applications such as conveyor systems, pumps, and blowers.

4. Home appliances: Brushed motors are used in home appliances such as vacuum cleaners, hair dryers, and blenders.

5. Toys: Brushed motors are commonly used in toys for driving wheels and propellers.

Brushed motors are widely used because of their simplicity, reliability, and low cost. However, they have some limitations such as limited lifespan due to brush wear and tear, and lower efficiency compared to brushless motors.

Shenzhen Secore Technology Co.,ltd,is a professional micro-motor manufacturer, with 7 years domestic and overseas market experience with R&D, production and sales of brushless DC motors, permanent magnet DC motors and gear motors, which are widely applied to various industries like auto parts, household appliances, personal care, high-end equipment, intelligent home, office, medical equipment, power tools, robots, and so on.

We implementing strictly ISO 9001, ISO/TS 16949 and ISO 14001 Management Systems. Our company has first-class R&D and manufacturing team. 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.

We adhere to the improved technology, continuous quality improvement, technology and management at the forefront of peers, with automated equipment, simplified and reliable design, and professional production technology, to ensure customer quality, price, delivery and service demand. We uphold the integrity of management, unremitting self-improvement, social commitment spirit, and development as our long-term commitment to micro motor industry. Contact us now for more information.
