11.1V 560KV Brushless Motor For Remote Control Quadcopter Aircraft

Ask Lasest Price
Brand Name :	SECORE
Model Number :	BLS-4250
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	10000pcs per month
Delivery Time :	10-12 working days

Add to Cart

Product Details
Company Profile

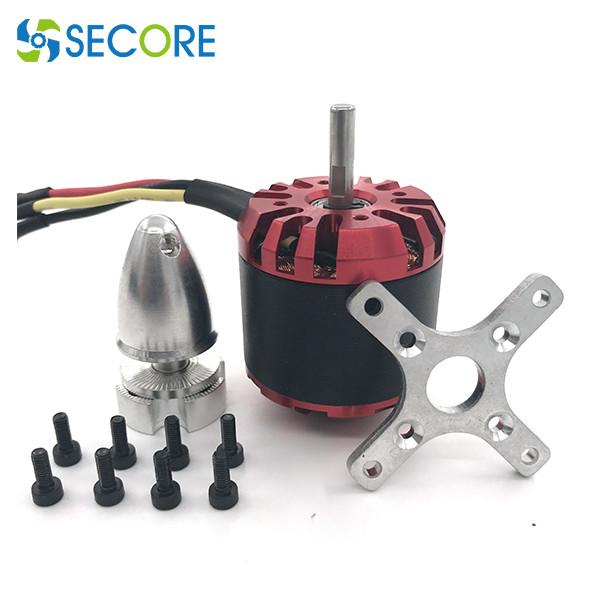

11.1V 560KV Brushless Motor For Remote Control Quadcopter Aircraft

11.1V 560KV High Temperature Resistance Brushless Motor For Remote Control Quadcopter Aircraft

Specification of Secore BLS4250 Brushless outrunner Motor for pruner :

BLS-4250 brushless motor, suitable for Remote control dualcopter quadcopter Aircraft, RC car, scooter etc.

Motor diameter: 42mm height 50mm, Shaft diameter 5mm

It adopts high-temperature micro ball-bearing, NdFeB N45SH magnet, silicon steel can be 0.2mm thickness, SUS 420 stainless steel shaft, machining accuracy 0.006-0.012mm. soft silicon rubber cable, high and low temperature resistance and environmental friendly, insulation and high temperature resistance, soft and fireproof, shrinkable tube.

Motor Model number	BLS-4250	Dimension	42*50mm
Motor Model number	BLS-4250	Dimension	( diameter * length )
Motor type	EC motor	Rotor	external rotor
Motor Name	RC aircraft motor	Hass sensor	no ( optional )
Rated voltage	11.1V-36V	KV(RPM/V)	500-820kv or custom
max lipo cell	3-6S	Output shaft	5mm OD
Max power	560W	weight	0.208kg

Tested performance:

model 4250-2		kv:720		no load current: 2.5A
tested paddle	test voltage	loaded current	loaded speed	thrust	remark
12*6	11.1	19.1	6988	1.15
	14.8	30.5	8670	1.9
	18.5	44.5	9960	2.5	106℃ / 10mn
13*6.5	11.1	25.3	6444	1.62
	14.8	42	8040	2.4	106℃ / 60s
	18.5	56.6	9000	3.25
14*7	11.1	29.6	6109	1.65
	14.8	48	7449	2.8	111℃ / 5mn
	18.5	61	8166	3.45

model 4250-1		kv: 820		no load current: 3.2A
tested paddle	test voltage	loaded current	loaded speed	thrust	remark
11*5.5	11.1	20.7	7909	1.1
	14.8	33.7	9959	1.8
	18.5	50	11675	2.85
12*6	11.1	27.2	7449	1.2
	14.8	45.8	9300	2.35	88℃ / 10mn
	18.5	59.8	10336	2.9
13*6.5	11.1	34.7	6904	1.75
	14.8	56	8369	2.45	120℃ / 10mn
	18.5	70	9330	3.3
