High Torque 15KG Robot Gear Motor , 12V 24V Brushless EC Motor 36mm

Ask Lasest Price
Brand Name :	SECORE
Model Number :	DC3650-36GB
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

High Torque 15KG Robot Gear Motor , 12V 24V Brushless EC Motor 36mm

High Torque 15KG Robot Gear Motor Brushless 12V24V EC Motor 36mm

Secore Planetary Brush DC Gear Motor 3650-36GB parameter:

Operating range	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				STALL		Reducer
Operating range	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	Output	TORQUE	CURRENT	Ratio	length	New weight
VDC	VDC	±10% r/min	mA	±10% r/min	A	kg.cm	W	kg.cm	A	1:00	mm	kg
6V-15V	12	1600	232	1300	1.3	0.7	10	3.2	4	3.7	26.6	0.666
6V-15V		1200	232	1000	1.3	1	10	4.6	4	5.2	26.6	0.666
6V-15V		430	232	360	1.3	3	10	10.7	4	14	32.6	0.735
6V-15V		230	232	195	1.3	5	10	20.7	4	27
6V-15V		120	232	100	1.3	9	10	38	4	50
6V-15V		85	232	75	1.3	13	10	46	4	71	38.7	0.8
6V-15V		60	232	52	1.3	18	10	65	4	100
6V-15V		45	232	40	1.3	20	10	90	4	139
6V-15V		32	232	24	1.3	26	10	110	4	189	44.4	0.875
6V-15V		23	232	17	1.3	36	10	150	4	263
6V-15V		16	232	12	1.3	51	10	no stall	4	369
6V-15V		12	232	9	1.3	71	10		4	516
6V-15V		8	232	6	1.3	100	10		4	721
15V-28V	24	1600	130	1300	0.67	0.7	10	3.2	4	3.7	26.6	0.666
15V-28V		1200	130	1000	0.67	1	10	4.6	4	5.2	26.6	0.666
15V-28V		430	130	360	0.67	3	10	10.7	4	14	32.6	0.735
15V-28V		230	130	195	0.67	5	10	20.7	4	27
15V-28V		120	130	100	0.67	9	10	38	4	50
15V-28V		85	130	75	0.67	13	10	46	4	71	38.7	0.8
15V-28V		60	130	52	0.67	18	10	65	4	100
15V-28V		45	130	40	0.67	20	10	90	4	139
15V-28V		32	130	24	0.67	26	10	110	4	189	44.4	0.875
15V-28V		23	130	17	0.67	36	10	150	4	263
15V-28V		16	130	12	0.67	51	10	no stall	4	369
15V-28V		12	130	9	0.67	71	10		4	516
15V-28V		8	130	6	0.67	100	10		4	721

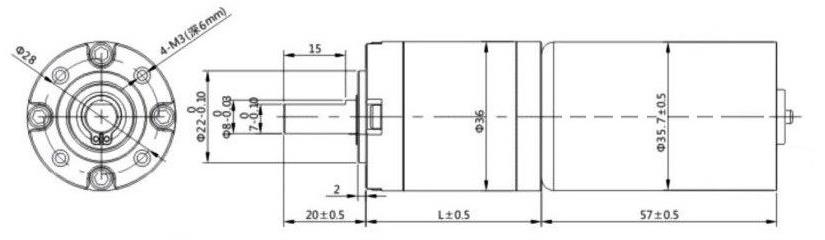

Outline drawing

When suggest a planetary gearbox?

One of the main features of planetary gearboxes is coaxial assembly. This type of assembly means that the planetary gearbox is compact. The advantages of planetary gearboxes include their low backlash, high efficiency, compact size, and high torque-to-weight ratio. On the other hand, their complex and expensive designs require specialized maintenance. A planetary gearbox is a gearbox in which the input and output shafts are aligned. Planetary gearboxes are used to transmit maximum torque in the most compact form known as torque density.
