Brand Name : | SECORE |
Model Number : | BL-2680 |
Certification : | CE ROHS |
Price : | Negotiated The Price |
Payment Terms : | T/T, D/A |
Supply Ability : | 100000pcs per month |
Delivery Time : | 10-12 working days |
12V EC Pump Motor 24V 300rpm Quiet Brushless Gear Motor For Peristaltic Pump
Specification of Secore BL2860 Brushless outrunner Motor :
•Model #: BL-2860
•Voltage: 12V, 24V or as per request
• Bearing: Ball bearing
• Speed: 300 RPM
•Low Noise, long life, high durability
•Optional driver to be equipped
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||
SPEED RPM | CURRENT A | SPEED RPM | TORQUE N.m | CURRENT A | TORQUE N.m | CURRENT A | ||
BL-2860 | 12V | 600 | 0.25 | 300 | 1.3 | 2.2 | 6.2 | 4.0 |

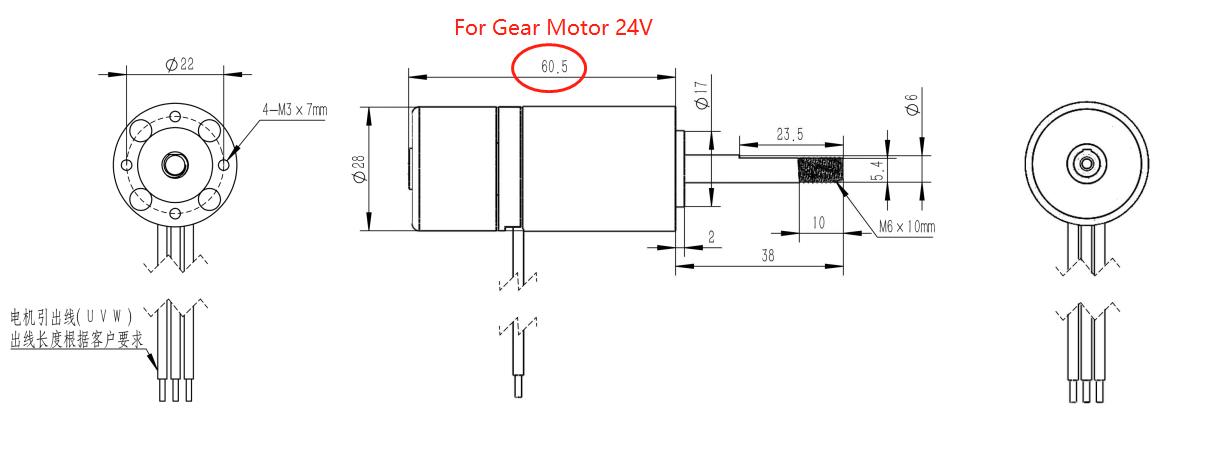

Dimension:
![]() |
