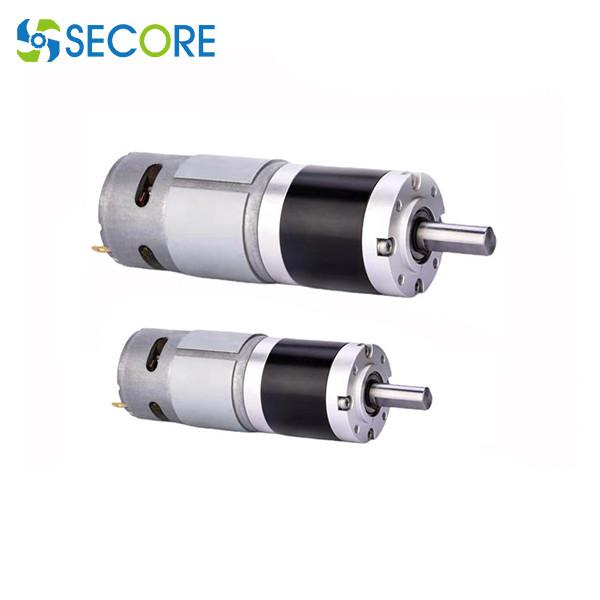

Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor

Ask Lasest Price
Brand Name :	SECORE
Model Number :	DC4259-42
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor

24V 2N.M 90rpm Medical Equipment Gear Motor Dc Brush Gear Reducing Motor

Secore Planetary Brush DC Gear Motor parameter:

Model	VOLTAGE	NO LOAD		WITH LOAD						gear ratio 1:___	Length L
Model	VOLTAGE	SPEED RPM	CURRENT max A	SPEED RPM	TORQUE kg.cm mN.m oz.in			CURRENT max A	Output W	gear ratio 1:___	Length L
DC4259-42	24	2162	0.35	1730	1.79	175.42	24.859	1.68	32	3.7	92.1
DC4259-42	24	1600	0.22	1280	2.41	236.18	33.469	1.68	32	5	92.1
DC4259-42	24	584	0.35	467	5.76	564.48	79.992	1.68	28	13.7	100.2
DC4259-42	24	432	0.22	346	7.78	762.44	108.045	1.68	28	18.5	100.2
DC4259-42	24	320	0.22	256	10.51	1029.98	145.958	1.68	28	25	100.2
DC4259-42	24	158	0.35	127	18.19	1782.62	252.614	1.68	24	50.5	108.3
DC4259-42	24	117	0.22	93	24.67	2417.66	342.605	1.68	24	68.5	108.3
DC4259-42	24	86	0.22	69	33.31	3264.38	462.593	1.68	24	92.5	108.3
DC4259-42	24	64	0.22	51	45.21	4430.58	627.854	1.68	24	125	108.3
DC4259-42	24	43	0.35	34	56.24	5511.52	781.033	1.68	20	187.5	119.4
DC4259-42	24	31	0.22	25	76.23	7470.54	1058.644	1.68	20	254	119.4
DC4259-42	24	23	0.22	19	102.62	10056.76	1425.135	1.68	20	342	119.4
DC4259-42	24	17	0.22	14	138.76	13598.48	1927.030	1.68	20	462.5	119.4
DC4259-42	24	13	0.22	10	187.6	18384.8	2605.295	1.68	20	625	119.4

Product name	Planetary gear motor	Motor type	Brush motor ( optional )
Voltage range	3~36V	Gear ratio	4-2418 ( customize )
Speed	3~2000r/min	Torque	180kg.cm or Customized
Output shaft	θ2~8mm	Weight	Customized

Outline drawing

When should you use a planetary gearbox?

One of the main features of planetary gearboxes is the coaxial assembly. This type of assembly means that the planetary gearbox is compact. The advantages of planetary gearboxes include their compact size, high efficiency, low backlash and high torque-to-weight ratio. On the other hand, their complex and expensive designs require specialized maintenance. A planetary gearbox is a gearbox in which the input and output shafts are aligned. Planetary gearboxes are used to transmit maximum torque in the most compact form known as torque density.
