Ball Bearing Brushless DC Gear Motor 60mm Planetary Gear BLDC Motor For Sweeper

Ask Lasest Price
Brand Name :	SECORE
Model Number :	BL60101-256
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

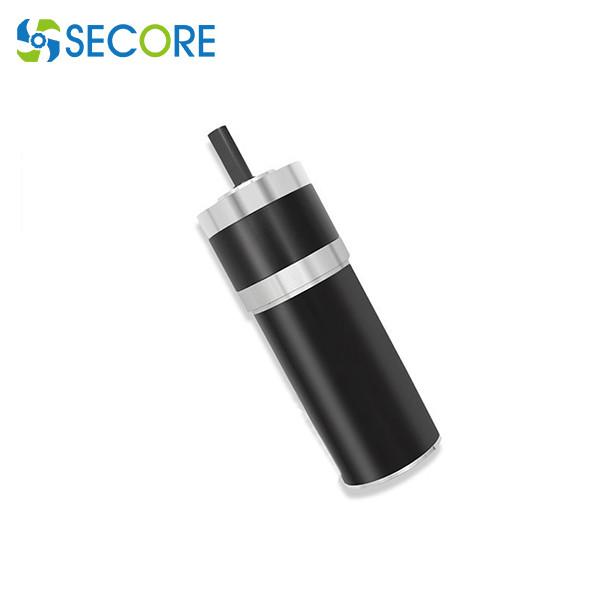

Ball Bearing Brushless DC Gear Motor 60mm Planetary Gear BLDC Motor For Sweeper

Dc Planetary Reducer Brushless Motor With Ball Bearing 60mm All Metal Gearbox Bldc Motor For Sweeper

Secore Planetary Brushless Gear Motor parameter:

Model	VOLTAGE	NO LOAD		WITH LOAD						gear ratio 1:___	Length L
Model	VOLTAGE	SPEED RPM	CURRENT max A	SPEED RPM	TORQUE kg.cm mN.m oz.in			CURRENT max A	Output W	gear ratio 1:___	Length L
BL60101-256	24	1700	0.82	1360	3.98	390.04	55.272	3.95	60	3.7	140.5
BL60101-256	24	1170	0.71	936	5.71	559.58	79.298	3.95	60	5.1	140.5
BL60101-256	24	470	0.82	376	12.44	1219.12	172.761	3.95	53	12.7	151.5
BL60101-256	24	330	0.71	264	17.84	1748.32	247.753	3.95	53	18.2	151.5
BL60101-256	24	230	0.71	184	25.48	2497.04	353.854	3.95	53	26	151.5
BL60101-256	24	130	0.82	104	37.88	3712.24	526.059	3.95	46	45.1	162.6
BL60101-256	24	90	0.71	72	54.26	5317.48	753.536	3.95	46	64.6	162.6
BL60101-256	24	65	0.71	52	77.78	7622.44	1080.170	3.95	46	92.6	162.6
BL60101-256	24	46	0.71	36	111.38	10915.24	1546.790	3.95	46	132.6	162.6
BL60101-256	24	35	0.82	28	112.42	11017.16	1561.233	3.95	39	160.6	178.6
BL60101-256	24	25	0.71	20	161.07	15784.86	2236.860	3.95	39	230.1	178.6
BL60101-256	24	20	0.71	16	230.72	22610.56	3204.124	3.95	39	329.6	178.6
BL60101-256	24	12	0.71	9	330.54	32392.92	4590.374	3.95	39	472.2	178.6
BL60101-256	24	9	0.71	7	473.55	46407.9	6576.426	3.95	39	676.5	178.6

Product name	Planetary gear motor	Motor type	Brushless motor ( optional )
Voltage range	3~24V	Gear ratio	4-2418 ( customize )
Speed	3~2000r/min	Torque	Customized
Output shaft	θ2~8mm	Weight	Customized

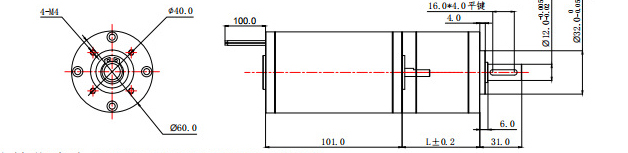

Outline drawing

Advantage of Brushless motor:

1. Higher speed (up to 100,000 rpm compared to 20,000 rpm for brushed motors)

2. Longer service life (over 10,000 hours of operation)

3. More reliable and efficient

4. No wearing parts except for the bearings, which reduces maintenance operation

5. Brushless motors are able operate at very high speeds makes them particularly suitable for hair dryer, fans, grinders or saws

6. Brushless motors are systematically equipped with an encoder, a sensor that allows for electronic switching and determination of the rotor position. These motors are therefore perfect for servomotor precision applications.
