Brand Name : | SECORE |
Model Number : | DC3657-50GB |
Certification : | RoHS |
Price : | Negotiated The Price |
Payment Terms : | T/T, D/A |
Supply Ability : | 100000pcs per month |
Delivery Time : | 10-12 working days |
High Torque 12kg 37kg 555 Spur Gear Deceleration Motor 100rpm For
Power Tool
Secore Brush gear motor 12v 24v 3657-50GB
Reduction stage | 2 | 3 | 4 | 5 | ||||
Reduction ratio | 9K | 21K, 25.5K | 50K, 60K, 72K | 118K, 141K, 170K, 205K | ||||
gearbox length L | 21.9 | 26.4 | 30.9 | 35.4 | ||||
Gearbox efficiency | 81% | 73% | 65% | 59% |
MODEL | VOLTAGE | NO LOAD | WITH LOAD | STALL | |||||
SPEED RPM | CURRENT max A | SPEED RPM | TORQUE Kg.cm | CURRENT max A | Output W | TORQUE min Kg.cm | CURRENT max A | ||
DC3657-50GB | 6 | 6000 | 0.858 | 4500 | 0.312 | 2.25 | 13.8 | 1.08 | 10.1 |
DC3657-50GB | 12 | 3000 | 0.171 | 2400 | 0.126 | 0.561 | 3.2 | 0.56 | 2.39 |
DC3657-50GB | 12 | 6000 | 0.351 | 4500 | 0.281 | 2.3 | 13.2 | 1.1 | 10.23 |
DC3657-50GB | 12 | 8500 | 0.638 | 6450 | 0.311 | 2.8 | 20.3 | 1.12 | 11.9 |
DC3657-50GB | 24 | 3000 | 0.121 | 2400 | 0.198 | 0.336 | 5.1 | 0.89 | 1.43 |
DC3657-50GB | 24 | 4500 | 0.174 | 3600 | 0.309 | 0.62 | 11.7 | 1.39 | 3.63 |
DC3657-50GB | 24 | 6000 | 0.271 | 4500 | 0.281 | 0.81 | 13.1 | 1.1 | 5.82 |

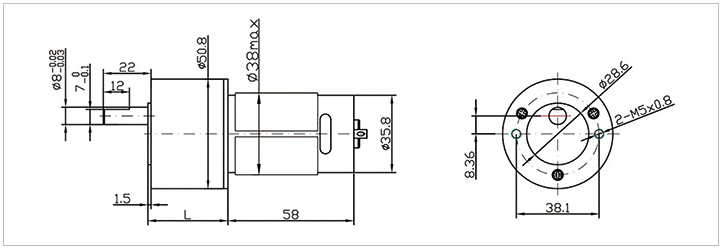

Dimension of the spur gear motor:
