12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable

Ask Lasest Price
Brand Name :	SECORE
Model Number :	DC3657-37GB
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	15-20 working days

Add to Cart

Product Details
Company Profile

12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable

Hot Sale 12v24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable

Secore provides customization on speed, voltage, torque, shaft and so on

Main characteristics on DC3657-37GB gear motor:

MODEL	VOLTAGE	Motor free load				motor with gearbox (no load )
MODEL	VOLTAGE	Current	Speed	torque	Motor size	gear ratio	gearbox length	current	speed
DC3657-37GB	12	0.3	8000	0.31	57	10	16.8	0.9	800
DC3657-37GB	12	0.3	8000	0.31	57	30	20.2	0.9	267
DC3657-37GB	12	0.3	8000	0.31	57	50	20.2	0.9	160
DC3657-37GB	12	0.3	8000	0.31	57	90	20.2	0.9	89
DC3657-37GB	12	0.3	8000	0.31	57	150	20.2	0.9	53
DC3657-37GB	12	0.3	8000	0.31	57	167	20.2	0.9	48
DC3657-37GB	12	0.3	8000	0.31	57	270	20.2	0.9	30
DC3657-37GB	12	0.3	8000	0.31	57	450	20.2	0.9	18
DC3657-37GB	12	0.3	8000	0.31	57	810	20.2	0.9	10
DC3657-37GB	12	0.3	8000	0.31	57	1350	20.2	0.9	6
DC3657-37GB	12	0.3	8000	0.31	57	2430	20.2	0.9	3

MODEL	VOLTAGE	max efficiency				Noise	At stall
MODEL	VOLTAGE	current	speed	torque	output power	dB	current	moment of force
DC3657-37GB	12	3.6	560	1.8	43	65	18	5.4
DC3657-37GB	12	0.6	187	5.4	43	65	3	16.2
DC3657-37GB	12	1.2	112	9	43	65	6	27
DC3657-37GB	12	1.2	62	16.2	43	58	6	48.5
DC3657-37GB	12	1.2	37	27	43	58	6	80.9
DC3657-37GB	12	1.2	34	30	43	58	6	90.1
DC3657-37GB	12	1.2	21	48.5	43	55	6	145.6
DC3657-37GB	12	1.2	12	80.9	43	55	6	242.7
DC3657-37GB	12	1.2	7	105.5	43	55	6	284.7
DC3657-37GB	12	1.2	4	146.5	43	55	6	366.2
DC3657-37GB	12	1.2	2	226	43	55	6	452

Motor mounting sizes and shafts options:

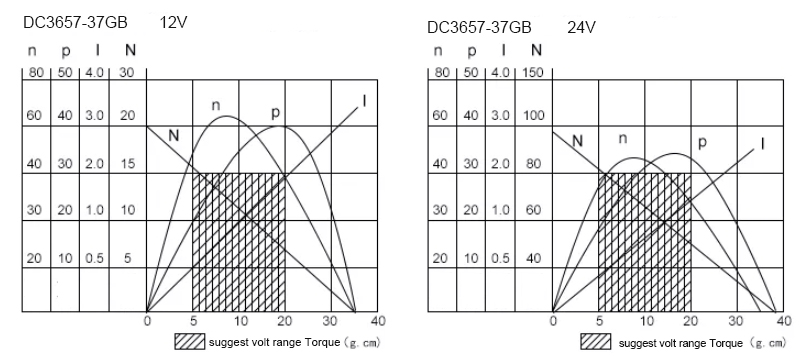

Performance curve

How to select the suitable gear motor?

1.Know your application requirements for your gear motor.

2. Select the proper motor.

3. Know the speed and torque requirements of the load to be driven.

Application cases

machinery equipment	electric tools	automatic control
financial equipment	vending machine	electric curtains
medical device	advertising light box	electric windows
