4260 Round Bldc Motor Bladeless Fan Motor 5600rpm Low Noise

Ask Lasest Price
Brand Name :	SECORE
Model Number :	BLS-4260I
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	8-10 working days

Add to Cart

Product Details
Company Profile

4260 Round Bldc Motor Bladeless Fan Motor 5600rpm Low Noise

4235 4250 4260 4266 Round Bldc Motor Bladeless Fan Motor 5600rpm Low Noise Fan Brushless Motor

Features of Micro BLDC Motor BLS-4260:

PWM speed adjust
FG output
Lock detect protection
Over current protection
Standby mode
Internal UVLO and thermal shutdown circuitry

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY			STALL
MODEL	VOLTAGE	SPEED RPM	CURRENT A	SPEED RPM	TORQUE gf.cm	CURRENT A	TORQUE gf.cm	CURRENT A
BLS-4260I	12	5600	0.43	4782	600	3	3800	10

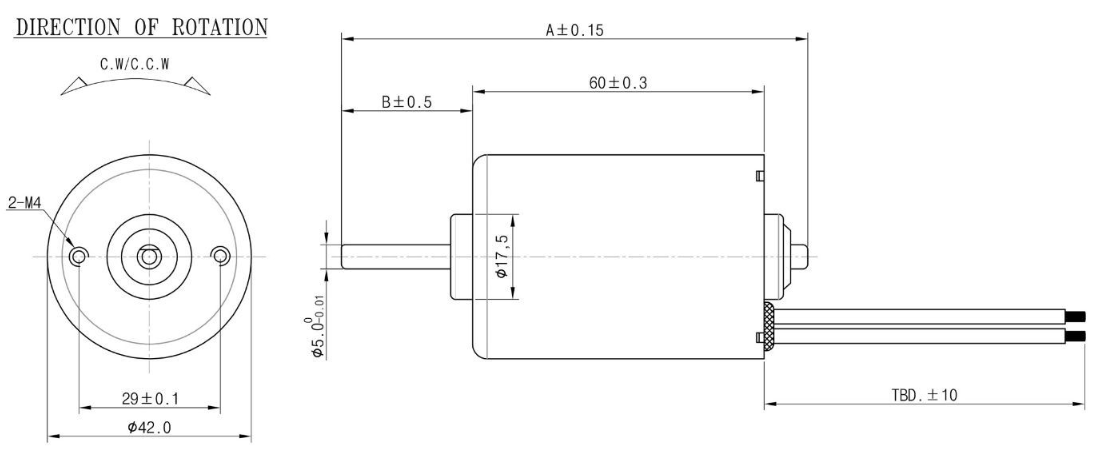

Dimension of the bldc motor:

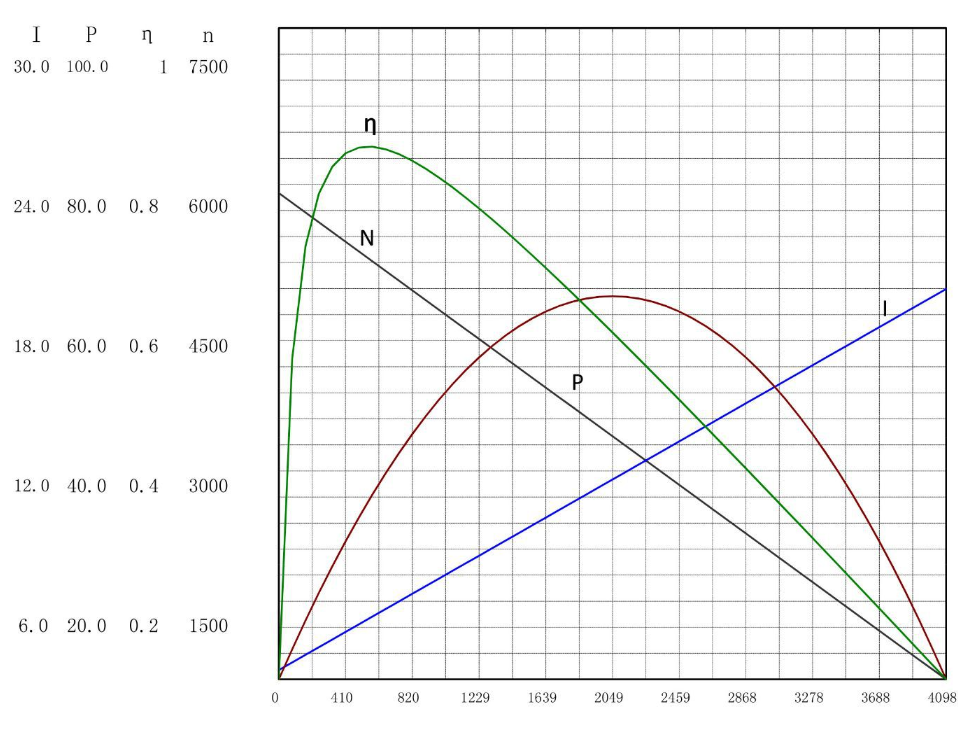

Performance curve:

Questions & Answers

Q: What’s your main motors?
A: Various diameter options for DC Micro Brush Motor, brushless and Gear Motor, Coreless motor. Tiny Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, DC Brushless Motor, Worm gear motor, Spur Gear Motor, Micro Motor, planetary motor, Vibration Motor, coin motor Etc.

Q: Do you accept customization?

A: Yes, in fact, most of our products are customized according to customer needs.

Q: Can your motor be forward and reverse rotation (CW/CCW)?

A: Yes, the exchange electrode motor will rotate in the opposite direction.

Q: Is there a charge for samples?

A: Our samples are generally charged, but our purpose is not to make a profit.

Q: What is the minimum order quantity?

A: There is no limit on the number of samples, the minimum order quantity for bulk goods is 500 units if no stock available, and it can be flexible for some models, approach us for more details.

Q: I don’t know how to choose a suitable motor.

A: Please email and tell us the specific purpose of the motor. It is best if you can caculate the voltage, speed and torque of the motor.
