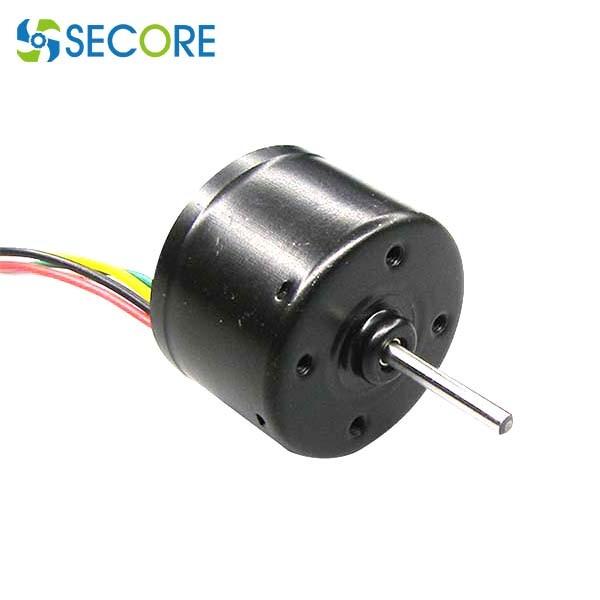

Mixer Bldc Motor 48V 3 Phases DC Brushless Motors D36mm For Medical Device

Ask Lasest Price
Brand Name :	SECORE
Model Number :	BLS-3625I
Certification :	ISO9901
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	10-12 working days

Add to Cart

Product Details
Company Profile

Mixer Bldc Motor 48V 3 Phases DC Brushless Motors D36mm For Medical Device

Mixer Bldc Motor 48V 3 Phases Dc Brushless Motors D36mm For Medical Device

Performance and features Of Miniature inner rotor bldc motor

1. Multiple voltage option: 3~48V, 310V
2. Multiple speed options: 5-100000rpm
3. Torque: 0.05kg.cm~600kg.cm
4. Shaft: D shape, dual-D, key slot, knurled, screw, hobbing, shaft hole, shaft pin
5. Commutation: brush, brushless
6. Application: Breeding Shed, Thermal insulation greenhouse, Vegetable greenhouse, Flower greenhouse, Planting greenhouses, Aquaculture greenhouse etc
7. Equipment: gearbox, drive, brake, encoder, fan etc

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY			STALL
MODEL	VOLTAGE	SPEED RPM	CURRENT A	SPEED RPM	TORQUE gf.cm	CURRENT A	TORQUE gf.cm	CURRENT A
BLS-2847I	24	3700	0.08	2800	200	0.65	820	1.6
BLS-2847I	32	20500	0.14	18050	200	1.3	1000	5.1

Motor dimensions

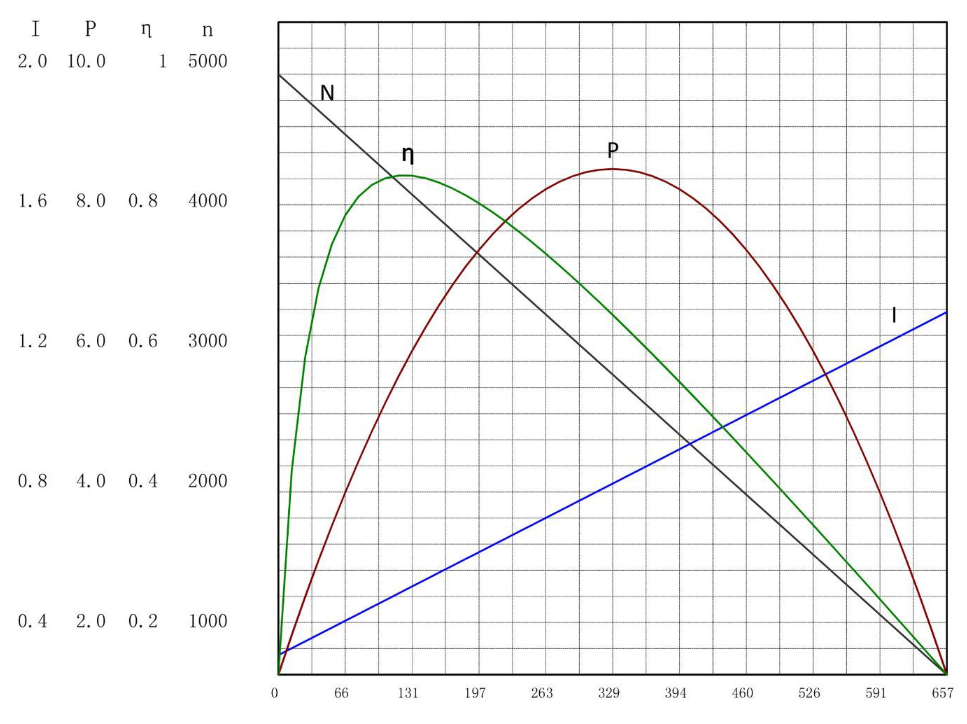

Performance curve

Typical Application

Mixer Bldc Motor 48V 3 Phases DC Brushless Motors D36mm For Medical Device

Advantages and shortages of BLDC Motors:

Advantages:
1.The speed of the brushless DC motor is higher than that of the brushed DC motor (the maximum speed is 100,000 rpm vs. 10,000 rpm).
2. Longer service life (over 10,000 hours)
3. More reliable and efficient.
4. With the exception of bearings, there are no wearing parts, and maintenance operations are less.
In fact, BLDC motors can run at very high RPMs, making them ideal for applications that require high RPMs, such as hair dryers, wall breakers, fans, grinders or saws. The brushless DC motor is systematically equipped with drivers, encoders and sensors, which can feedback information data such as speed and torque to achieve precise control. Therefore, they are especially suitable for precision applications that require precise control, such as medical instruments, aerospace equipment, servo robots, etc.
Shortcoming:
a) High initial cost: Each BLDC motor requires an electronically commutated drive, which is expensive.
b) Brushless DC motors often also require gear reducers in drive applications.
