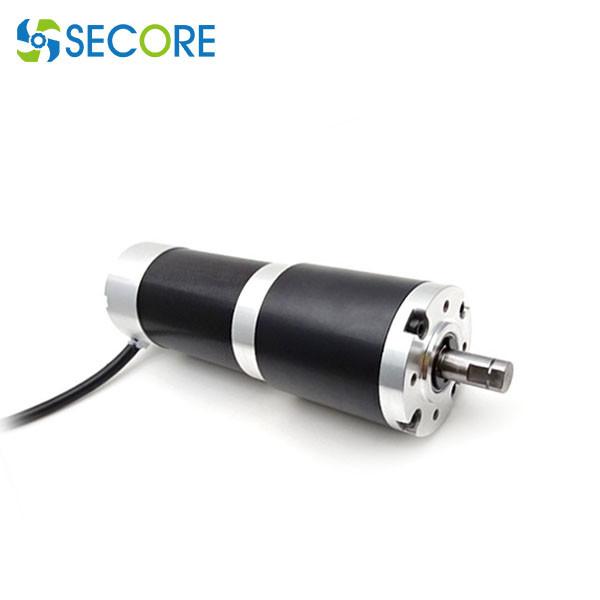

High Torque Brushless Gear Motor 11rpm 24V With Planet Gearbox

Ask Lasest Price
Brand Name :	SECORE
Model Number :	BLS-57100-GB
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	10-12 working days

Add to Cart

Product Details
Company Profile

High Torque Brushless Gear Motor 11rpm 24V With Planet Gearbox

90kg High Torque Brushless Gear Motor With Planet Gearbox Factory Direct Supply

Key technical data for motor:

Model #	RATED Voltage	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	RATED Voltage	SPEED	CURRENT	SPEED	TORQUE	CURRENT	Out. Power	TORQUE	CURRENT
	VDC	±10% r/min	mA	±10% r/min	g.cm	mA	W	g.cm	A
BLS-56100-12	12	3500	600	3050	400	1900	12.5	3200	4.5
BLS-56100-24	24	3500	300	3050	400	1000	12.5	3200	4.5

Key technical data for motor with gearbox:

gear ratio		4	13	18	47	55	77	168	198	326
no-load Speed ( rpm )	12V	870	290	190	72	62	45	20	18	11
rated Torque (kg.cm )		1.4	4.2	5.8	14	16	23	47	55	90
rated Speed ( rpm )		760	230	170	65	55	40	18	15	9
no-load Speed ( rpm )	24V	870	260	190	72	62	45	20	18	11
rated Torque (kg.cm )		1.4	4.2	5.8	14	16	23	47	55	90
rated Speed ( rpm )		760	230	170	65	55	40	18	15	9

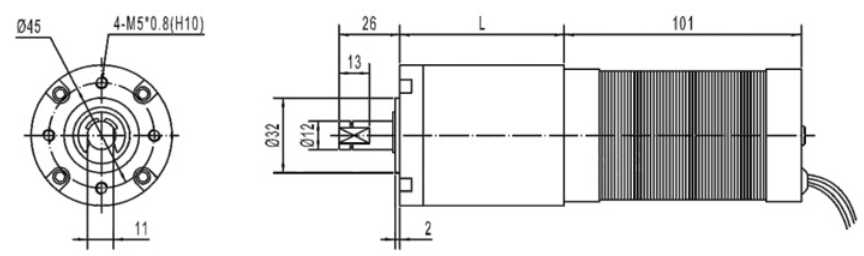

Gear motor dimension:

What is Planetary gearbox?

Planetary gearbox, also called planetary gearhead,its structure is a mechanism in which multiple planetary gears rotate around a sun gear. It is also a mechanism that reduces the transmission speed ratio while increasing the torque of the motor proportionally.

Advantages: Compared with similar ordinary tooth physics box, it has smooth transmission, large bearing capacity, large transmission ratio in small space, especially life. If the gear is made of steel, the volume is small and the appearance is fancy.
