200rpm DC Planetary Gear Motor 36mm 12v Dc High Torque For Medical Device

Ask Lasest Price
Brand Name :	SECORE
Model Number :	DC555-GB
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	15-18 working days

Add to Cart

Product Details
Company Profile

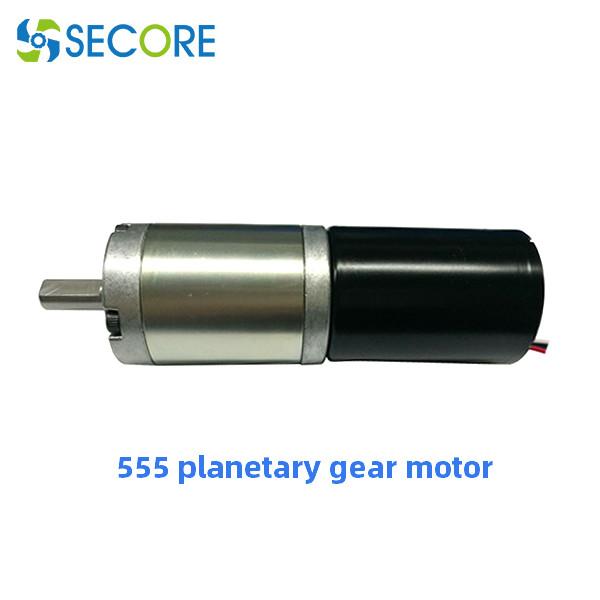

200rpm DC Planetary Gear Motor 36mm 12v Dc High Torque For Medical Device

555 Gear Motor 36mm 12v Dc High Torque Planetary Gear Motor Supplier With Optional Brake

Main features:

Motor type	Brush commutated DC gear motor
Gearbox type	Planetary
Diameter	Gearbox: 36mm; DC motor:36mm
Nominal voltage	6V/12V/24V DC or customized
Gear ratio	1:3.7 ~1:3736
No load current	121mA~858mA
Nominal current	0.8A-2.5A
No load speed	6000rpm
Nominal speed	5375rpm
Permissible load range	0.1N.m~9N.m for S1 duty cycle
Nominal power	3-20W
IP rating	up to IP68

Motor parameters:

Motor Model number	RATED Voltage	NO LOAD		AT MAXIMUM EFFICIENCY			Output Power	STALL
	RATED Voltage	SPEED	CURRENT	SPEED	TORQUE	CURRENT	Output Power	TORQUE	CURRENT
	VDC	±10% r/min	mA	±10% r/min	g.cm	A	W	g.cm	A
DC-555	6	6000	858	4680	150	2.25	7.5	700	10
DC-555	12	3000	170	2400	126	0.56	3.2	630	2.4
DC-555	12	6000	349	4500	281	2.3	13.2	1200	10.2
DC-555	12	8500	639	6450	300	2.8	20.3	1400	11.9
DC-555	24	3000	121	2400	199	0.34	5.1	990	1.4
DC-555	24	4500	175	3600	310	0.62	11.8	1500	3.6
DC-555	24	6000	271	5375	421	0.8	23.6	2000	5.8

Gearbox parameters:

Stage	1	2	3	4	5
Reduction ratio	3.7, 5.2	14, 19, 27	51, 71, 100, 139	189, 264, 369, 515, 721	977, 1367, 1910, 2671, 3736
gearhead length L	26.5	34.5	42.5	50.5	58.5
gearhead efficiency	89%	81%	73%	65%	59%

Output torque of gear motor: output torque of motor x reduction ratio x gearbox efficiency;

Output speed of gear motor: output speed of motor reduction ratio.

Gear motor mounting sizes:

200rpm DC Planetary Gear Motor 36mm 12v Dc High Torque For Medical Device

Questions & Answers

Q: Do you accept customization?

A: Yes, in fact, most of our products are customized according to customer needs.

Q: What can be customized?

A: Generally, you can customize the parameters of the motor such as voltage, speed and torque, as well as the length of the output shaft. It can also control the noise of the motor and enhance the life of the motor according to the special needs of customers.

Q: Can your motor be forward and reverse rotation (CW/CCW)?

A: Yes, the exchange electrode motor will rotate in the opposite direction.

Q: Is there a charge for samples?

A: Our samples are generally charged, but our purpose is not to make a profit.

Q: How long does it take to make a sample?

A: Usually about 1-2 weeks.

Q: How long does it take for mass production?

A: Generally about 4-5 weeks, please communicate with us if you need to expeditiously deal with special circumstances.

Q: What is the minimum order quantity?

A: There is no limit on the number of samples, the minimum order quantity for bulk goods is 500 units if no stock available, and the limit can be relaxed if trial production is appropriate.

Q: I don’t know how to choose a suitable motor.

A: Please contact our business and tell us the specific purpose of the motor. It is best if you can caculate the voltage, speed and torque of the motor.
