22mm Brush Coreless Dc Motor CW CCW 4.8W With High Efficiency

Ask Lasest Price
Brand Name :	SECORE
Model Number :	SC-CL2225-GB
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

22mm Brush Coreless Dc Motor CW CCW 4.8W With High Efficiency

Mirco 22mm High Quality Brush Coreless Dc Motor CW CCW With 80% High Efficiency

Brush DC Motor parameter:

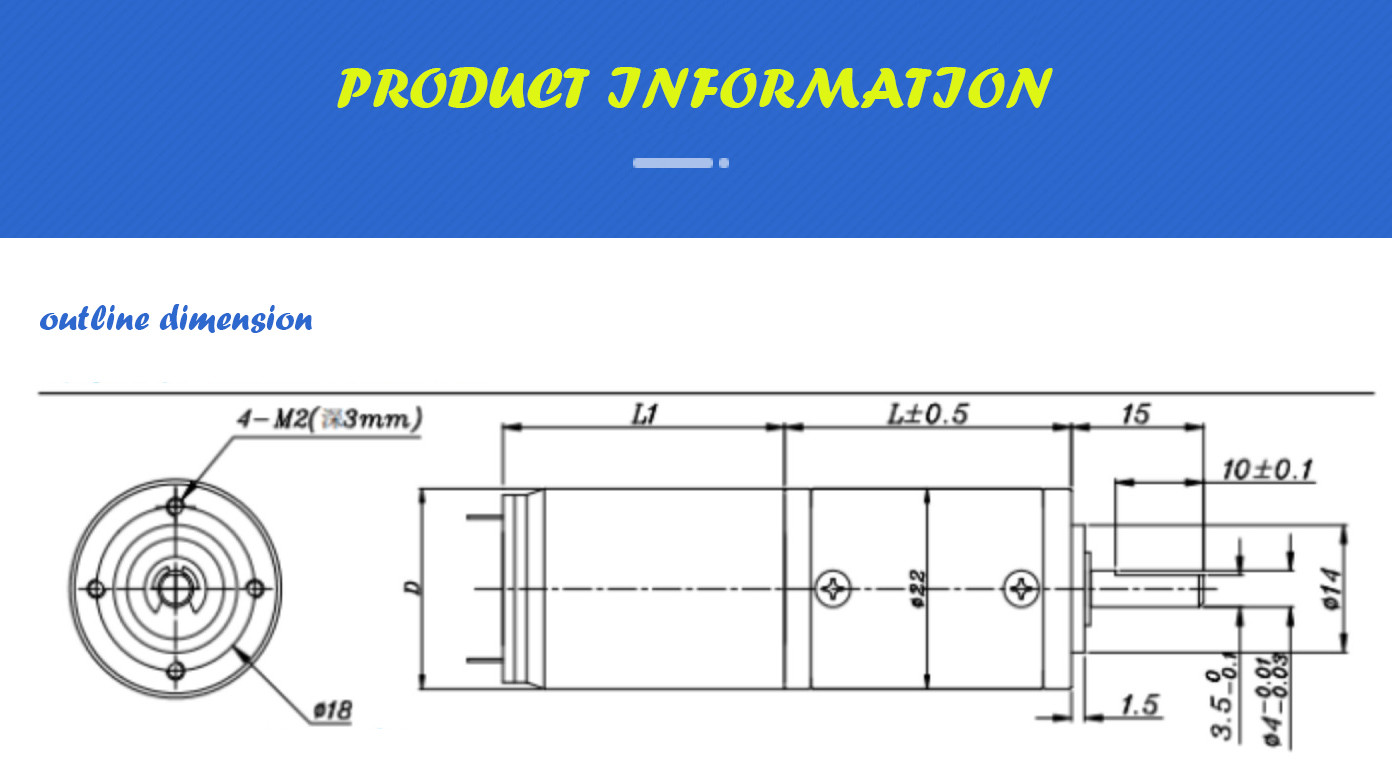

Motor Model number	RATED Voltage	NO LOAD		AT MAXIMUM EFFICIENCY			Output Power	Efficiency	STALL		dia*L1
	RATED Voltage	SPEED	CURRENT	SPEED	TORQUE	CURRENT	Output Power	Efficiency	TORQUE	CURRENT	dia*L1
	VDC	±10% r/min	mA	±10% r/min	g.cm	mA	W	%	g.cm	A	mm
SC-CL-2225	6	4900	35	4040	20	200	0.85	70	115	1	22*25
SC-CL-2225	12	10200	42	8360	50	480	4.4	78	275	2.5
SC-CL-2225	12	10500	35	9200	50	500	4.8	83	400	3.7
SC-CL-2232	3	6500	114	5550	50	1240	2.9	80	340	7.9	22*32
SC-CL-2232	6	6300	51	5100	67	800	5.8	79	360	4
SC-CL-2232	12	8630	45	7385	73	600	5.6	80	500	3.8
SC-CL-2232	24	6100	20	4630	85	250	4.1	74	340	0.96
SC-CL-2232	24	9200	36	8000	73	320	6.1	80	560	62.4

Motor type	Coreless brush motor
brush struction	carbon brush motor gear hole diameter θ2
Main output performance	Relational express
No load speed (rpm)	n=n1/i (n1=motor free load speed, i=ratio)
load torque (g.cm)	T=T1iη (T1=motor torque, i=ratio, η=gearbox efficiency )
load speed (rpm)	n=n2/i (n2=motor load speed, i=ratio )

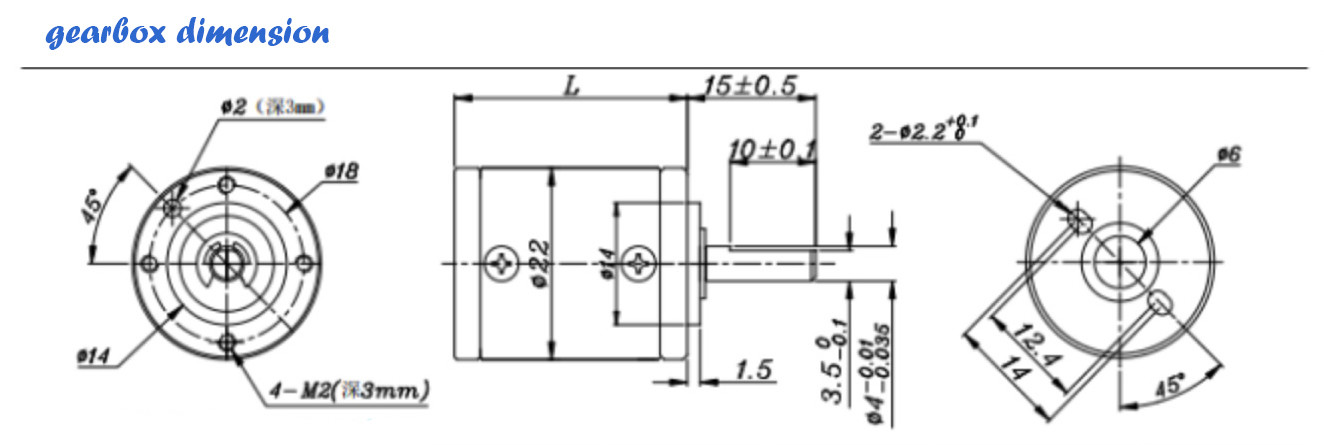

stage	gear ratio			gearbox length	rated torque	short-time torque	efficiency
1	3.71	4.29	5.18	21.8	80-300g.cm	2kg.cm	94%
2	13.73	15.88	19.2	27.2	0.5-2kg.cm	3kg.cm	88%
2	18.37	22.21	26.85	27.2	0.5-2kg.cm	3kg.cm	88%
3	50.9	58.86	71.17	32.6	1.5-3kg.cm	8kg.cm	83%
	68.07	82.3	99.51
	78.72	95.18	115.08
4	188.61	218.12	263.73	38	3-8kg.cm	15kg.cm	78%
	252.25	304.99	368.76
	291.72	352.81	426.46
	515.63	337.35	407.89
	493.18	596.3	720.98
5	698.99	808.31	977.36	43.4	3-8kg.cm	15kg.cm	73%
	934.81	1130.27	1366.60
	1081.07	1307.11	1580.41
	1910.86	1250.2	1511.61
	1827.68	2209.83	2672.01
	1445.8	1748.12	2113.63
	2555.57	3089.91	3735.98

Application

Coreless DC motors are ideal for a myriad of dynamic applications, ranging from automotive systems, wire tensioning systems, microscopes and electric screwdrivers, tattoo machines, golf caddies and massage chairs. With a coreless motor, the possibilities for designers are endless. It includes robotic projects like small positioning and pan/tilt systems. Medical instruments such as prosthetics, insulin pumps, X-ray machines and laboratory equipment, also benefit from the use of coreless motors. Besides, there are numerous applications in particularly demanding sectors such as aerospace, defence and surveillance.
