    Bldc Planetary Gear Reduction Motor 42mm Nema 17 5500rpm For AGV

    Ask Lasest Price
    Brand Name : SECORE
    Model Number : BL4259-GB
    Certification : CE ROHS
    Price : Negotiated The Price
    Payment Terms : T/T, D/A
    Supply Ability : 100000pcs per month
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

    Bldc Planetary Gear Reduction Motor 42mm Nema 17 5500rpm For AGV

    42mm Nema 17 Planetary Gear Reduction Bldc Motor High Torque Brushless Gear Motor With Encoder


    Model Number: SC4259-GB

    Rotation direction: CW viewing from output shaft
    Customization: shaft, winding
    Model numberSC42BLS01-GB1
    Number of Poles8
    Phase to phase resistance1.8 OHMS
    Free load speed5500RPM ±10%
    Free load current0.3A Max
    Nominal voltage24 VDC
    Rated speed4000RPM ±10%
    Rated torque0.0625N.m
    Output power26W
    Torque constant0.042 N.m/A
    Back EMF constant4.36V/kRPM
    Insulation ClassB
    Electrical connecting guide:
    +5Vredpin 424AWG
    UL1007
    HALL Uyellowpin 5
    HALL Vgreenpin 6
    HALL Wbluepin 7
    GNDblackpin 8
    PHASE Uyellowpin 320AWG
    UL1007
    PHASE Vgreenpin 2
    PHASE Wbluepin 1
    ENCODER connecting guide:
    VccEncoder volt (+5v)redPin 92517-8
    26AWG
    GNDEncoder Grand (0v)blackPin 10
    EA+Encoder A+ phase inputyellowPin 11
    EA-Encoder A- phase inputgreenPin 12
    EB+Encoder B+ phase inputbluePin 13
    EB-Encoder B- phase inputwhitePin 14
    EZ+Encoder Z+ phase inputgrayPin 15
    EZ-Encoder Z- phase inputbrownPin 16

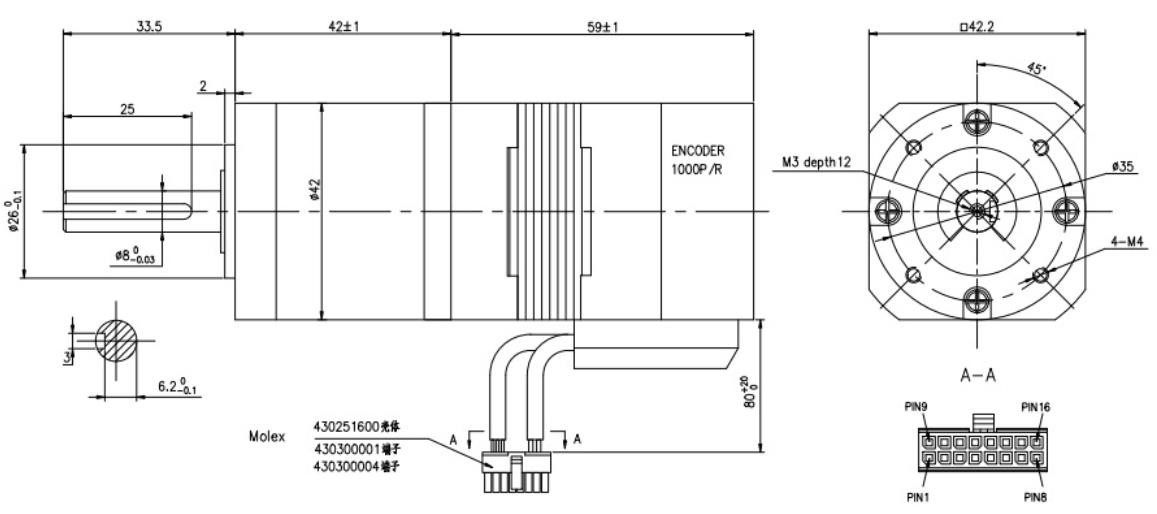

    Dimension
    Bldc Planetary Gear Reduction Motor 42mm Nema 17 5500rpm For AGV
    Bldc Planetary Gear Reduction Motor 42mm Nema 17 5500rpm For AGVBldc Planetary Gear Reduction Motor 42mm Nema 17 5500rpm For AGV
