LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor

Manufacturer Customized 5G Antenna Gear Reducer 16mm Planetary Gear Reducer Motor

Model Number: SC1627-GB

Loaded torque: 130~8554g.cm

Rated current: 180~200mA

Rated speed: 280~4.5r/min

Rotation direction: Bi-directional ( CW/CCW )

Customized: available

Nominal value	no-load current	no-load speed	rated Speed	rated torque	rated current
Voltage	mA	RPM	RPM	g.cm	mA
5	50	375	281	130	180
5	50	250	187	195	180
5	50	167	125	291	180
5	55	94	70	467	190
5	55	63	46	700	190
5	55	41	31	1052	190
5	55	27	20	1576	190
5	60	23	17	1689	200
5	60	15	11	2534	200
5	60	10	7.8	3802	200
5	60	7	5.2	5702	200
5	60	4.5	3.5	8554	200

Dimension

LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor

1. High-quality raw materials

The gearbox housing adopts superior PA66/powder metallurgy materials, the gear adopts special LCP material, which is durable.

Low noise, injection molding, low friction

Advance equipment, low cost

Professional R&D team and technicians

POM material for gears

durable and stable

fast delivery cycle

2. Precision Machining

Using German CNC equipment for precision processing, using different processes and special processing methods according to customer requirements, helping customers save 50% of their time.

It has adjustable reduction ratio, corresponding power can be selected according to customer requirements.

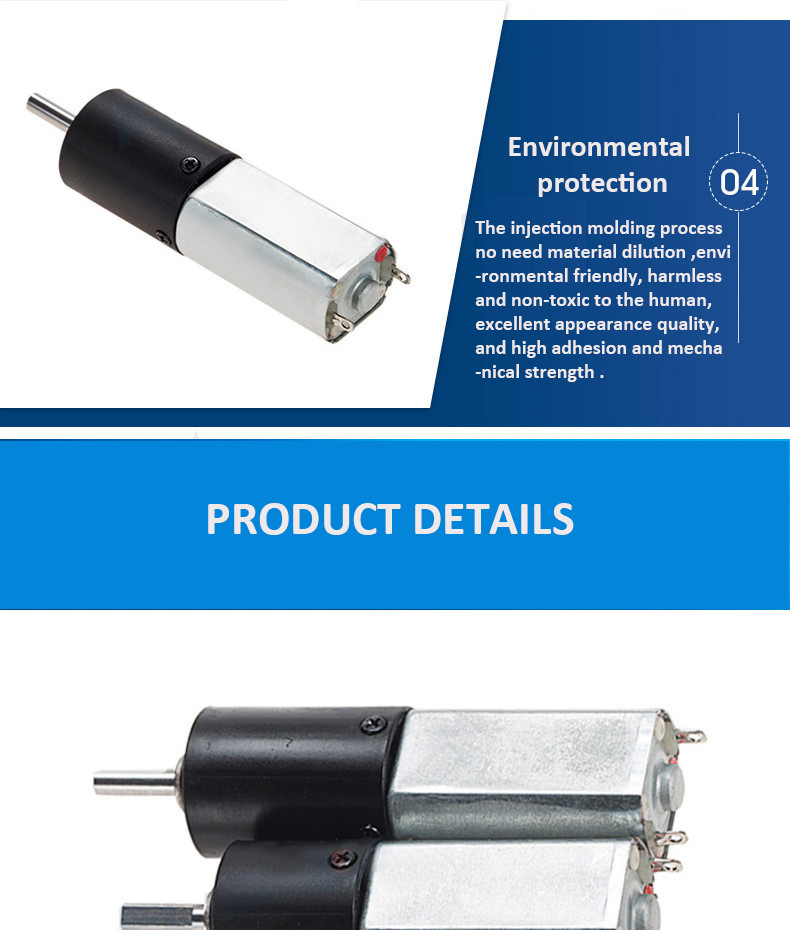

3. Safety and Environmental protection

The injection molding process no need material dilution, environmentally friendly, harmless and non-toxic to the human, excellent appearance quality, and high adhesion and mechanical strength.
