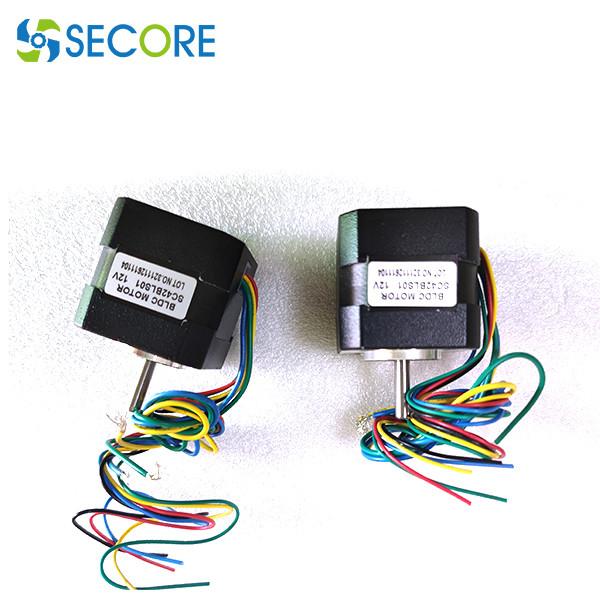

    4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle

    Ask Lasest Price
    Brand Name : SECORE
    Model Number : SC-42S01
    Certification : CE ROHS
    Price : Negotiated The Price
    Payment Terms : T/T, D/A
    Supply Ability : 6000pcs per month
    Delivery Time : 7-10 working days
    MOQ : 100PCS
    • Product Details
    • Company Profile

    4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle

    4000rpm 12V 24V Square/Round Bldc Motor With 120 Degree Electrical Angle For Record Player


    SPECS / Continuous rating for 41mm frame 26W brushless motor


    Model NounitModel
    SC42BLS01SC42BLS02SC42BLS03SC42BLS04
    Number Of PhasePhase3
    Number Of PolesPoles8
    Rated VoltageVDC24
    Rated SpeedR/M4000
    Rated TorqueN.m0.06250.1250.1850.25
    Rated CurrentA1.83.34.86.3
    Rated PowerW2652.577.5105
    Peak TorqueN.m0.190.380.560.75
    Peak CurrentA5.410.615.520
    Back E.M.FV/Krpm4.14.24.34.3
    Torque ConstantN.m/A0.0390.040.0410.041
    Rotor Inertiag.cm²24487296
    Body Lengthmm416181100
    WeightKg0.30.450.650.8
    SensorHoneywell
    Insulation ClassB
    Degree of ProtectionIP30
    Storage Temperature-25~+70*C
    Operating Temperature-15 +50*C
    Working Humidity=85% RH
    Working EnvironmentNo direct sunlight, non corrosive gas^flammable gas, oil mist, no dust
