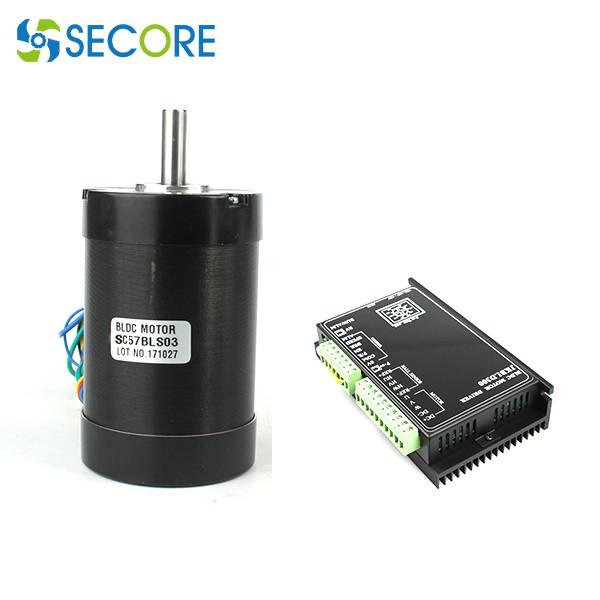

57mm diameter 180W bldc motor adjustable speed 3000-10000rpm with
controller for feeding machine
SPECS / Continuous rating for 57mm 180w brushless motor
Customized brushless motor 24V, 36V, 48VDC
Electronic customization: Winding custom
Mechnical customization: Various shaft types include knurled,
hobbing, shaft pin, threaded shaft, shaft hole, D-Shaft, Double D
shaft, key slot etc.
| Phase to phase resistance | 0.45 OHMS |
| Free load speed | 5200RPM ±10% |
| Free load current | 0.7A Max |
| Nominal voltage | 36VDC |
| Rated speed | 4000RPM ±10% |
| Rated torque | 0.43N.m |
| Output power | 180W |
| Torque constant | 0.063N.m/A |
| Back EMF constant | 6.6V/kRPM |
| Insulation Class | B |
| +5V | red | 24AWG
UL1007 |
| HALL U | blue |
| HALL V | green |
| HALL W | white |
| GND | black |
| PHASE U | yellow | 20AWG
UL1007 |
| PHASE V | red |
| PHASE W | black |
The brushless DC motor is composed of a motor body and a driver,
and is a typical mechatronic product. Brushless motor refers to the
motor without brush and commutator (or slip ring), also known as
commutator-less motor.
Brushless motor main features and advantages:
1. A comprehensive replacement of DC motor speed control, a
comprehensive replacement of frequency converter + variable
frequency motor speed control, a comprehensive replacement of
asynchronous motor + reducer speed control;2. It has all the advantages of the traditional DC motor, and at
the same time removes the carbon brush and slip ring structure;
3. It can run at low speed and high power, and it can save the
speed reducer to directly drive a large load;
4. Small size, light weight, and large output;
5. Excellent torque characteristics, good medium and low speed
torque performance, large starting torque and small starting
current;
6. Stepless speed regulation, wide speed regulation range, strong
overload capacity;
7. Soft start and stop, good braking characteristics, can save the
original mechanical braking or electromagnetic braking device;
8. High efficiency, the motor itself has no excitation loss and
carbon brush loss, eliminating multi-stage deceleration
consumption, and the comprehensive power saving rate can reach
20%~60%. Only the power saving item can offset the purchase cost in
one year;
9. High reliability, good stability, strong adaptability, simple
repair and maintenance;
10. Resistance to turbulence and vibration, low noise, low
vibration, smooth operation and long life;
11. No radio interference, no sparks, especially suitable for
explosive places, with explosion-proof type;
12. Trapezoidal wave magnetic field motor and sine wave magnetic
field motor can be selected as required.
