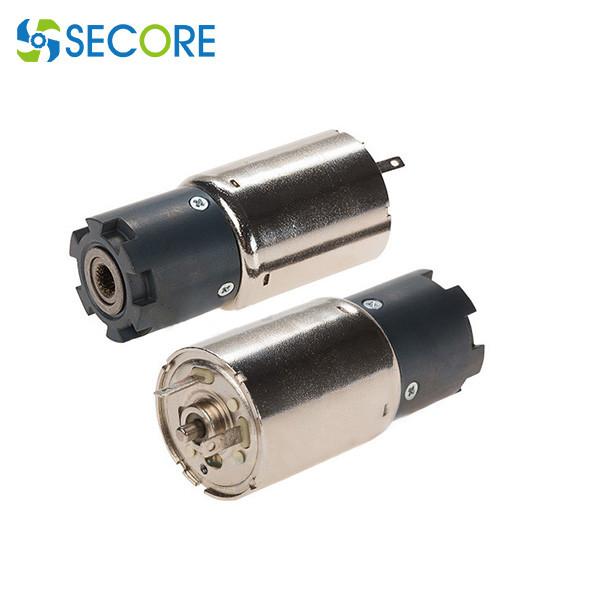

530rpm 4A Plastic Precision Gear Motor With 26mm Planetary Gearhead

Ask Lasest Price
Brand Name :	SECORE
Model Number :	SC26G-2953
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

530rpm 4A Plastic Precision Gear Motor With 26mm Planetary Gearhead

Micro Plastic Precision Gear Motor With 26mm Planetary Gearhead

Rated voltage	starting voltage	No-load current	locked-rotor current	Output speed	Use torque	gearbox length	Total length
12VDC	10VDC	850mA max	27A max	485rpm	0.81N.m	24.5mm	77.5mm

Model Number: SC26G-2953

Free load current:850mA

Loaded torque: 4.5kg.cm

Rated current: 4A

Rated speed: 485r/min

Rotation direction: Bi-directional ( CW/CCW )

Customized: available

Dimension

530rpm 4A Plastic Precision Gear Motor With 26mm Planetary Gearhead

This motor using German CNC equipment precision processing, according to customer requirements using different processes, special processing methods, to help customers save 50% of time.

It has adjustable reduction ratio, corresponding power can be selected according to customer requirements.

The injection molding process no need material dilution, environmentally friendly, harmless and non-toxic to the human, excellent appearance quality, and high adhesion and mechanical strength.
