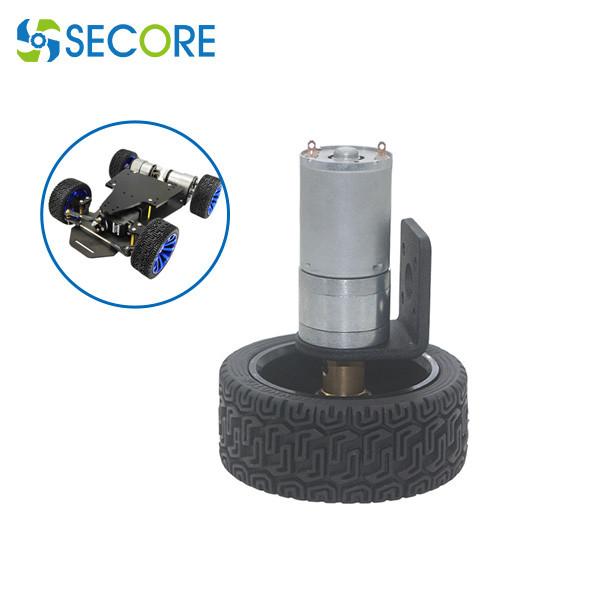

24V Gear Dc Motor For Smart Robot Toy, 65mm Wheel Coupling Kit With
Encoder
Main features:
-Voltage: 24V or 6V, 12V
-Size: φ 25 * 31mm motor -- optional gearbox length
- D section Shaft diameter: 4mm or customized
- D section Shaft length: 12mm or customized
- To be tailored: Output Shaft, motor speed, voltage, torque etc.
| DC 24V Precious Metal brush with low noise and consumption |
| Reducer | Ratio | 1:i | 1:4.4 | 1:9.6 | 1:21.3 | 1:35 | 1:46 | 1:78 | 1:103 | 1:171 | 1:226 | 1:377 | 1:500 |
| Size L | mm | 17 | 17 | 19 | 21 | 21 | 23 | 23 | 25 | 25 | 27 | 27 |
| No Load | Speed | rpm | 1360 | 620 | 280 | 170 | 130 | 77 | 60 | 35 | 26 | 16 | 12 |
| Current | A | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 |
| Rated load | Speed | rpm | 1000 | 450 | 220 | 130 | 100 | 60 | 46 | 27 | 20 | 12 | 9 |
| Torque | Kgf.cm | 0.1 | 0.22 | 0.5 | 0.8 | 1 | 1.8 | 2.4 | 4 | 5.2 | 8.4 | 9 |
| Current | A | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Stall | Torque | Kgf.cm | 0.35 | 0.75 | 1.7 | 2.8 | 3.6 | 6.2 | 8.2 | 9 | 9 | 9 | 9 |
| Current | A | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
Q & A
Que: To customize the motor, what information should be provided?
Ans: You need to offer the specification of the motor like expected
sizes, rated voltage, speed, torque, shafts. It'll be great if the
drawing is available.
Que: What’s your main motors?
Ans: Various diameter options for DC Micro Brush Motor, brushless and
Gear Motor. Tiny Dc Motor, Electric Motor, Gear Motor, Mini Dc
Motor, Brush Dc Motor, DC Brushless Motor, Worm gear motor, Spur
Gear Motor, Micro Motor, planetary motor, Vibration Motor, coin
motor Etc.
Brushed Motor
Brushless Motor (BLDC motor)
Coreless brush & Coreless Brushless
Planetary Gear Motors
Spur Gear Motors
Worm Gear Motor
Que: What’s the main application of the micro dc motor?
Ans: Our DC motors are widely applied in precision
instrument,financial equipment, medical devices, audio and visual
equipment, industrial automation and secure, banking and vending
system, home and office automation, automatic door system, medical
device, personal care, power tool, smart household appliances,
kitchen appliances, auto parts, RC Drone, industry apparatus,
consumer electronics, kids toys,electric water valves, robots,
Fascia Massague Gun etc.
