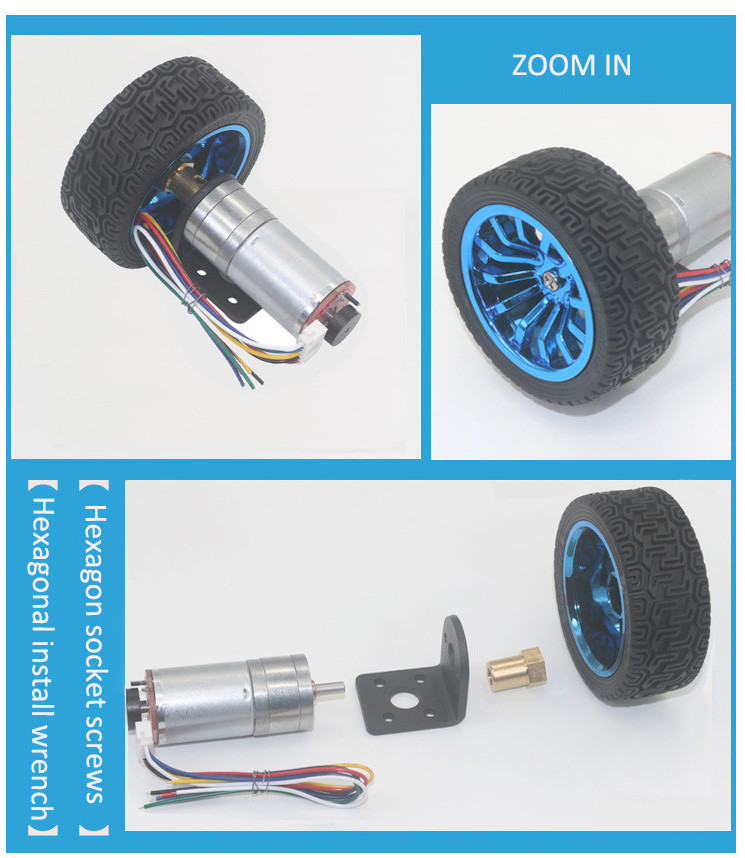

Factory Supply Electric Four-Wheel Drive Motor Kit, 25mm Brush Dc
Gear Motor For Toy Car
Main features:
| Model number | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | Length | wegith |
| RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | Output | TORQUE | CURRENT |
| SC25-371 | VDC | ±10% r/min | A | ±10% r/min | A | kg.cm | W | kg.cm | A | mm | g |
| SC25-371 | 12 | 2270 | 0.07 | 1686 | 0.7 | 0.09 | 1.59 | 0.36 | 3.1 | 18 | 83 |
| SC25-371 | 12 | 1040 | 0.07 | 770 | 0.7 | 0.2 | 1.61 | 0.78 | 3.1 | 17.5 | 83 |
| SC25-371 | 12 | 470 | 0.07 | 350 | 0.7 | 0.44 | 1.61 | 1.75 | 3.1 | 19 | 86 |
| SC25-371 | 12 | 280 | 0.07 | 200 | 0.7 | 0.73 | 1.57 | 2.92 | 3.1 | 21 | 88 |
| SC25-371 | 12 | 210 | 0.07 | 156 | 0.7 | 0.96 | 1.56 | 3.85 | 3.1 | 21 | 88 |
| SC25-371 | 12 | 130 | 0.07 | 96 | 0.7 | 1.6 | 1.6 | 6.4 | 3.1 | 23 | 90 |
| SC25-371 | 12 | 95 | 0.07 | 70 | 0.7 | 2.1 | 1.47 | 8.5 | 3.1 | 23 | 90 |
This gear reduction DC motor adopts a planetary gear box design,
the products are widely used in robot arm, embossing machines,
printing machines, ovens, telescopic rods, massage chair etc.
Motor Use Needs to know>>
1. When you use the motor, there should be no binding objects. For
example, the adhesive should not flow into the bearing through the
rotating shaft, which will hinder the operation of the motor.
2. The rotation of the shaft may have the opposite effect on the
life of the motor. In order to extend the life, please check
whether your load conforms to the regulations.
It should not be overloaded, or there are items that hinder
rotation at the end of the shaft.
3. Do not store in surrounding high temperature or extreme
humidity, and do not place in corrosive gas, which will reduce the
effect of the motor.
4. Do not run the motor in the surrounding high temperature and
humidity
5. When soldering is required on the positive and negative motor
terminals of the power supply, the temperature of the soldering
iron should be 340℃±40℃, and the heating time should be within 3
seconds.
6. Don't let the motor shaft get stuck. When power is supplied, the
motor will overheat in a short time and its accessories might be
burned.
7. Due to the lack skills of the staff, the quality of the motor
cannot be guaranteed when the motor encounters the things mentioned
in the manual, or the superficial judgment is obviously fault.
8. Supply the specified power and be sure that it is within the
range of measurable requirements.
9. The installation of pulleys or gears should not be abnormally
aggravated when pressed in
10. When installing the motor, if the screw is too long, it will
cause contact between the motor itself and the rotor, which will
affect the characteristics.
