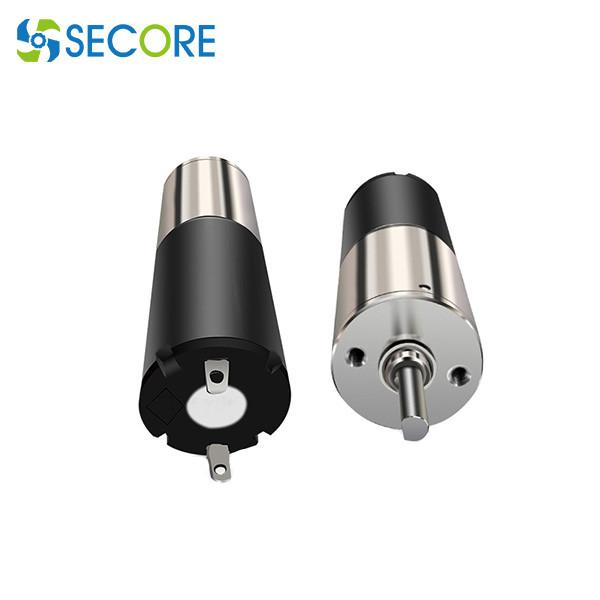

Dentist Device Coreless Brushed Motor 6mA Planetary 11000rpm

Ask Lasest Price
Brand Name :	SECORE
Model Number :	SC-CLb2864-GB
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

Dentist Device Coreless Brushed Motor 6mA Planetary 11000rpm

16mm Coreless Brush Motor, Dentist Device Planetary Coreless Gear Motor
Technical parameter:

Rated voltage: 24V, no-load speed: 11000rpm, no-load current: 6mA, stall current: 0.74A, stall torque: 15.3mNm

Motor model no.		CL1625-1	CL1625-2	CL1625-3	CL1625-4
At Nomimal
Rated voltage	V/DC	3.7	6	12	24
Rated speed	RPM	6800	7840	8640	8800
Rated current	A	0.67	0.5	0.27	0.15
Rated Torque	mNm	2.5	2.8	2.7	3
Free Load
Free load speed	RPM	8500	9800	10800	11000
Free load current	A	0.05	0.02	0.015	0.006
At Max Efficiency
Max efficiency	%	76	83	79	83
Speed	RPM	7566	8968	9775	10066
Current	A	0.39	0.22	0.14	0.07
Torque	mNm	1.39	1.19	1.28	1.29
At Max output power
Max output power	W	2.82	3.59	3.81	4.37
Speed	RPM	4250	4900	5400	5500
Current	A	1.6	1.23	0.66	0.37
Torque	mNm	6.34	6.99	6.74	7.58
At stall
current	A	3.15	2.43	1.3	0.74
torque	mNm	12.7	14.1	13.6	15.3

Dimension:

Product type:Brush dc motor, Brushless dc motor
Diameter: 10mm-60mm
Working voltage: 3V-48V
Speed no-load: 2000---100000RPM
Power: 2W-800W
Production mode: Our product is a customized type, which is tailored to the needs of customers, they are produced in order mode;
Motor Selection: Provide original version or customized drawings. Welcome to contact sales staff to understand basic performance parameters and determine the specifications and models suitable for customers;
Product color: the regular color is black or silver, if you need to customize other colors, please specify in advance;
Equip with: Reducer, encoder, brake

Application
