100rpm 75mA Micro Gear Motor 3v 6v 12v 15mm Length ISO For Smart Toy

Ask Lasest Price
Brand Name :	SECORE
Model Number :	SC12-N20
Certification :	ISO9001
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	10-12 working days

Add to Cart

Product Details
Company Profile

100rpm 75mA Micro Gear Motor 3v 6v 12v 15mm Length ISO For Smart Toy

Micro 15mm Lenght Low Speed Gear Motor 3v 6v12v For Smart Toy

Main features:

Motor type: mini DC gear motor
Diameter: 10*12*15MM

DC3V
gear ratio	10	30	50	100	150	210	298	380
no-load Speed ( rpm )	750	250	150	75	50	35	25	19
no-load Current ( mA )	18	18	18	18	18	18	18	18
rated Speed ( rpm )	580	200	110	60	38	28	20	14
rated Torque ( g.cm )	30	90	150	300	450	630	900	1140
rated Current ( A )	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1
stall Torque ( kg.cm )	0.1	0.24	0.4	0.8	1.2	1.7	2.3	2.9
stall Current ( mA )	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2

DC6V
gear ratio	10	30	50	100	150	210	298	380
no-load Speed ( rpm )	1500	500	300	150	100	75	50	40
no-load Current ( mA )	30	30	30	30	30	30	30	30
rated Speed ( rpm )	580	200	110	60	38	28	20	14
rated Torque ( kg.cm )	0.1	0.24	0.4	0.5	0.8	1.7	2.3	3
rated Current ( A )	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15
stall Torque ( kg.cm )	0.2	0.48	0.8	1.6	2.4	3.4	3.4	3.4
stall Current ( mA )	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4

DC12V
gear ratio	10	30	50	100	150	210	298	380
no-load Speed ( rpm )	3000	1000	600	300	200	140	100	78
no-load Current ( mA )	75	75	75	75	75	75	75	75
rated Speed ( rpm )	2300	770	460	230	150	100	77	160
rated Torque ( kg.cm )	0.2	0.6	1	2	3	3.4	3	3
rated Current ( A )	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
stall Torque ( kg.cm )	0.2	0.48	0.8	1.6	2.4	3.4	3.4	3.4
stall Current ( mA )	0.9	0.9	0.9	0.9	0.9	0.9	0.9	0.9

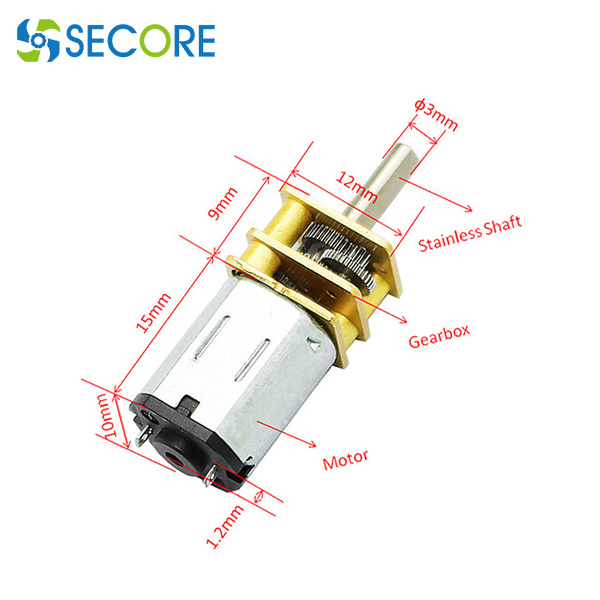

Gear motor dimensions:

Explanation of motor related parameters:

1. No-load speed: the speed at which the motor is normally energized and without load. (Unit: rpm or revolution/minute or r/min)

2. No-load current: the current when the motor is normally energized without load. (Unit: mA mA)

3. Load Torque: the rated torque during the motor load test, which is only used for test reference; (unit: g-cm grams per centimeter or kg-cm kg per centimeter)

4. Load speed: the speed of the motor under load torque. (Unit: rpm or revolution/minute or r/min)

5. Load current: the current of the motor under load torque. (Unit: mA milliampere or A amp)

6. Locked-rotor torque: also called starting torque, which is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock

(Unit: g-cm grams per centimeter or kg-cm kilograms per centimeter)

7. Locked-rotor current: also called starting current, which is the maximum current when the motor is blocked and stopped; (unit: mA or A)
