0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor

Ask Lasest Price
Brand Name :	SECORE
Model Number :	SC13-050GM
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	10-12 working days

Add to Cart

Product Details
Company Profile

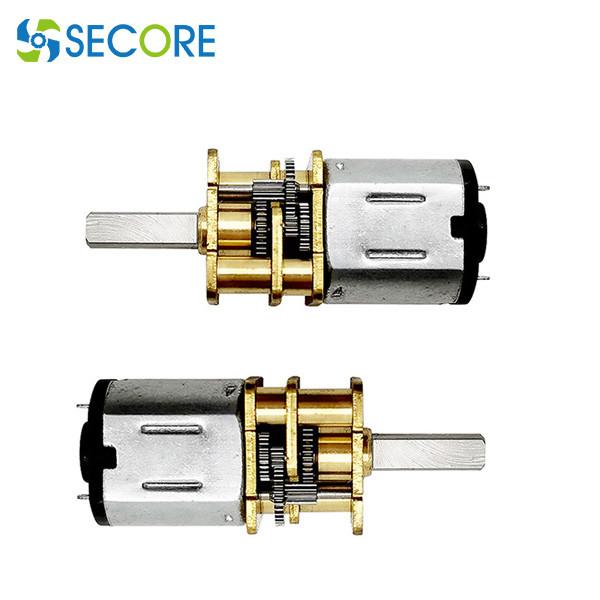

0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor

Micro 10*12mm Metal Gear Motor, Bicycle Motor Metal Gear Box Motor

Main features:

Motor type: mini DC gear motor
Diameter: 10*10*12.5MM

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
OPERATING RANGE	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE		Output	TORQUE		CURRENT
OPERATING RANGE	RATED	r/min	A	r/min	A	mN.m	g.cm	W	mN.m	g.cm	A
4.0-7.0	6.0	61	0.034	48	0.117	46.9	477.1	0.231	203.4	2075	0.41
3.0-6.0	4.5	59	0.041	47	0.146	41.5	424.3	0.203	198.1	2021	0.55

Explanation of motor related parameters:

1. No-load speed: the speed at which the motor is normally energized and without load. (Unit: rpm or revolution/minute or r/min)

2. No-load current: the current when the motor is normally energized without load. (Unit: mA mA)

3. Load Torque: the rated torque during the motor load test, which is only used for test reference; (unit: g-cm grams per centimeter or kg-cm kg per centimeter)

4. Load speed: the speed of the motor under load torque. (Unit: rpm or revolution/minute or r/min)

5. Load current: the current of the motor under load torque. (Unit: mA milliampere or A amp)

6. Locked-rotor torque: also called starting torque, which is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock

(Unit: g-cm grams per centimeter or kg-cm kilograms per centimeter)

7. Locked-rotor current: also called starting current, which is the maximum current when the motor is blocked and stopped; (unit: mA or A)

Gear motor dimensions:
