36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage

Ask Lasest Price
Brand Name :	SECORE
Model Number :	SC13-050GM
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	10-12 working days

Add to Cart

Product Details
Company Profile

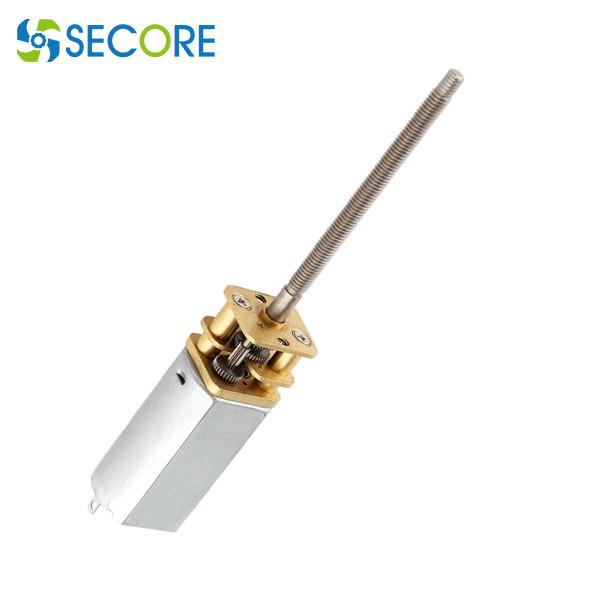

36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage

6V 25g Lightweight 36mm Long Shaft Thread Gear Motor For Model Aircraft Landing undercarriage and pull rod steering

Main features:

Motor type: Brush commutated DC gear motor
Diameter: Gearbox: 9mm*12mm *37.9mm

Volt	6V ( 3v to 24v )
No-Load Speed	550rpm
Rated Speed	4000rpm
Rated Torque	400g.cm
Application	Pull rod steering motor, Model Aircraft Landing Gear

Gear motor dimensions:

36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage

Rated voltage VDC	No-load speed r/min	No-load current mA	Rated torque g.cm	Rated speed	Rated current mA	Stall torque kg.cm	Stall current mA
24	450	85	420	340	240	1.9	450
12	225	65	210	170	200	0.9	400
9	170	40	150	125	180	0.7	350
12	700	150	460	590	430	3	3200
9	520	130	340	440	390	2.5	2600
6	350	95	230	295	310	1.5	1800

Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.

36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage

Explanation of motor related parameters:

1. No-load speed: the speed at which the motor is normally energized and without load. (Unit: rpm or revolution/minute or r/min)

2. No-load current: the current when the motor is normally energized without load. (Unit: mA mA)

3. Load Torque: the rated torque during the motor load test, which is only used for test reference; (unit: g-cm grams per centimeter or kg-cm kg per centimeter)

4. Load speed: the speed of the motor under load torque. (Unit: rpm or revolution/minute or r/min)

5. Load current: the current of the motor under load torque. (Unit: mA milliampere or A amp)

6. Locked-rotor torque: also called starting torque, which is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock

(Unit: g-cm grams per centimeter or kg-cm kilograms per centimeter)

7. Locked-rotor current: also called starting current, which is the maximum current when the motor is blocked and stopped; (unit: mA or A)
