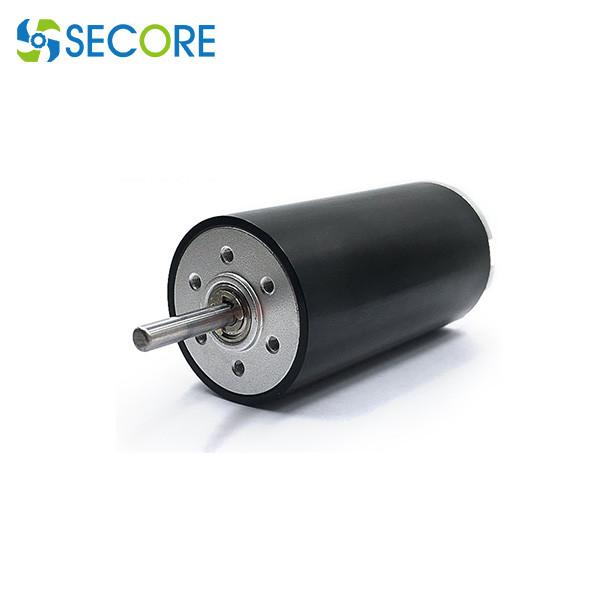

38W 7000rpm Coreless DC Motor 3.15A Ironless Dc Motor For Precision Instrument

Ask Lasest Price
Brand Name :	SECORE
Model Number :	SC-CL3263
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	100000pcs per month
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

38W 7000rpm Coreless DC Motor 3.15A Ironless Dc Motor For Precision Instrument

32mm Brush Coreless Motor Manufacturer, Ironless Dc Motor 3263 For Precision Instrument

Technical parameter:

Product type:Brush dc motor, Brushless dc motor

Diameter: 10mm-60mm

Working voltage: 3V-48V

Speed no-load: 2000---100000RPM

Power: 2W-800W

Production mode: Motor is a customized product, which is tailored to the needs of customers

Motor Selection: Provide original version or customized drawings. Welcome to contact sales staff to understand basic performance parameters and determine the specifications and models suitable for customers;

Product color: the regular color is black or silver, if you need to customize other colors, please specify in advance;

Motor model no.		SC-CL3263-1	SC-CL3263-2	SC-CL3263-3
At Nomimal
Nominal voltage	V/DC	12	24	48
Nominal speed	RPM	6942	6764	5696
Nominal current	A	3.79	2.09	0.92
Nominal Torque	mN.m	50.7	58.91	62.24
Free Load
No load speed	RPM	7800	7600	6400
No load current	A	300	120	50
At Max Efficiency
Max efficiency	%	81.6	84.3	84.8
Speed	RPM	7098	7030	5920
Current	A	3.15	1.461	0.646
Torque	mN.m	41.5	40.2	42.4
At Max output power
Max output power	W	94.2	106.6	94.8
Speed	RPM	3900	3800	3200
Current	A	16.2	9.1	4.0
Torque	mNm	230.7	267.8	282.9
At stall
current	A	32	18	8
torque	N.m	461.3	535.6	565.8
Motor Constants
Terminal resistance	Ω	0.38	1.33	6
Terminal inductance	mH	0.192	0.75	2.58
Torque constant	mNm/A	14.55	29.95	71.17
Speed constant	rpm/V	650	316.7	11.3
Speed/torque constant	rpm/mNm	16.9	14.2	584.2
Mechanical time constant	ms	5.24	4.4	3.51
Rotor inertia	g.cm²	30.01	30.1	29.8
Number of pole pairs	1
Number of phases	7
weight of motor	g	280
Typical noise level	dB	≤43

Mounting sizes

Application

Coreless DC motors are ideal for a myriad of dynamic applications, ranging from automotive systems, wire tensioning systems, microscopes and electric screwdrivers, tattoo machines, golf caddies and massage chairs. With a coreless motor, the possibilities for designers are endless. It includes robotic projects like small positioning and pan/tilt systems. Medical instruments such as prosthetics, insulin pumps, X-ray machines and laboratory equipment, also benefit from the use of coreless motors. Besides, there are numerous applications in particularly demanding sectors such as aerospace, defence and surveillance.
