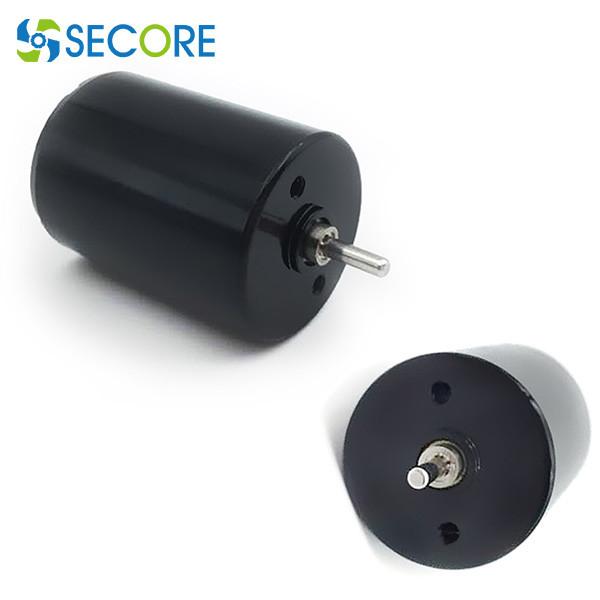

    Medical Device 0.88A Coreless Brushed Motor 6V 12V 4.2W 22mm Diameter

    Ask Lasest Price
    Brand Name : SECORE
    Model Number : SC-CL2230
    Certification : CE ROHS CCC VDE
    Price : Negotiated The Price
    Payment Terms : T/T, D/A
    Supply Ability : 100000pcs per month
    Delivery Time : 6-10 working days
    • Product Details
    • Company Profile

    Medical Device 0.88A Coreless Brushed Motor 6V 12V 4.2W 22mm Diameter

    6V 12V Coreless Brushed Motor 22mm Diameter, Medical Device Use Coreless Motor


    Technical parameter:


    MODELVOLTAGEAT NOMINALFREE LOAD
    RATED VOLTAGESPEEDCURRENTTORQUESPEEDCURRENT
    r/minAmNmr/minmA
    CL2230694920.883.911130060
    CL223012102480.635.221220065
    CL22301892340.425.791080045
    CL22302494050.295.261100030
    MODELVOLTAGEAT MAXIMUM EFFICIENCYAt Max output powerAT STALL
    RATED VOLTAGEMAX
    EFFICIENCY
    SPEEDCURRENTTORQUEMax output
    power
    Speed(RPM)CurrentTorqueCURRENTTORQUE
    %r/minAmNmWr/minAmNmAmNm
    CL2230674.9799440.6792.937.2356502.5512.22524.45
    CL22301274.9310736.00.4893.9110.4161001.8316.33.632.6
    CL22301875.429558.00.3394.611.354001.3219.982.639.96
    CL22302475.8597350.2344.1710.4455000.9218.131.836.26
    6V12V18V24V
    Motor Constants1.23.336.9213.33
    Terminal resistancemH0.190.4030.851.6
    Torque constantmNm/A4.989.2215.6420.49
    Speed constantrpm/V1883.31016.7600458.3
    Speed/torque constantrpm/mNm462.3374.3270.5303.5
    Mechanical time constantms13.0511.087.99.09
    Rotor inertiag.cm²2.72.832.792.54
    Number of pole pairs1
    Number of phases5
    weight of motorg54
    Typical noise leveldB≤42

    Dimension:
    Medical Device 0.88A Coreless Brushed Motor 6V 12V 4.2W 22mm Diameter
    Features of Coreless DC motor
    • Built-in Hall sensor, easy to drive;
    • The stator winding adopts cylindrical winding, which has no cogging effect and extremely small torque fluctuation;
    • High-performance rare earth NdFeB magnet with extremely high power density;
    • Aluminum alloy shell, better heat dissipation, lower temperature rise;
    • Imported brand ball bearings ensure a life span of more than 10,000 hours;
    • Novel combined structure of end cover and fuselage to ensure installation accuracy;
    • Suitable for power tools, medical equipment, servo control and various occasions.
