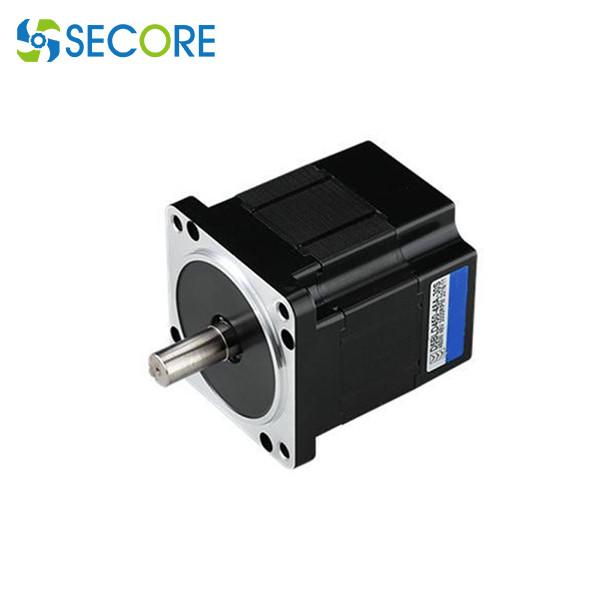

4.12A 24V 3000rpm 200W Three Phase Brushless Motor For Robot

Ask Lasest Price
Brand Name :	SECORE
Model Number :	BLS86-300W
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	7000pcs per month
Delivery Time :	7-10 working days
MOQ :	1 PC

Add to Cart

Product Details
Company Profile

4.12A 24V 3000rpm 200W Three Phase Brushless Motor For Robot

200W 24V 3000rpm High Efficiency Brushless Motor With Driver/Controller For Robot

Secore Motor specializes in the production and sales of various DC brush & brushless motors, provides one-to-one customer service, and accepts customization of motors with special parameters. Welcome to inquire.

Feature:

1. free maintenance
2. small compact size, light weight
3. low power consumption
4. high efficiency, high C/P, low heat losing
5. high speed and performance
6. lower EMI, lower emission
7. reversible direction, convenient speed adjustment
8. smart controlling

SPECS / Continuous rating for 90W

Model number	Voltage V	Power W	Rated speed rpm	Rated current A	Rated torque N.m	No-load speed rpm	No-load current A	Peak Torque N.m
电机型号	电压 V	功率 W	额定转速 rpm	额定电流 A	额定转矩 N.m	空载转速 rpm	空载电流 A	最大转矩 N.m
BLS86-90W-1230	12	90	3000	9.39	0.29	3300	<0.84A	0.87
BLS86-90W-2430	24	90	3000	4.68	0.29	3300	<0.71A	0.87
BLS86-90W-3630	36	90	3000	3.14	0.29	3300	<0.59A	0.87
BLS86-90W-4830	48	90	3000	2.35	0.29	3300	<0.51A	0.87
BLS86-90W-31030	310	90	3000	0.37	0.29	3300	<0.31A	0.87

SPECS / Continuous rating for 150W

Model number	Voltage V	Power W	Rated speed rpm	Rated current A	Rated torque N.m	No-load speed rpm	No-load current A	Peak Torque N.m
电机型号	电压 V	功率 W	额定转速 rpm	额定电流 A	额定转矩 N.m	空载转速 rpm	空载电流 A	最大转矩 N.m
BLS86-150W-1230	12	150	3000	15.64	0.481	3300	<5.21A	1.44
BLS86-150W-2430	24	150	3000	7.82	0.481	3300	<3.12A	1.44
BLS86-150W-3630	36	150	3000	5.22	0.481	3300	<2.5A	1.44
BLS86-150W-4830	48	150	3000	3.9	0.481	3300	<1.62A	1.44
BLS86-150W-31030	310	150	3000	0.61	0.481	3300	<0.31A	1.44

SPECS / Continuous rating for 200W

Model number	Voltage V	Power W	Rated speed rpm	Rated current A	Rated torque N.m	No-load speed rpm	No-load current A	Peak Torque N.m
电机型号	电压 V	功率 W	额定转速 rpm	额定电流 A	额定转矩 N.m	空载转速 rpm	空载电流 A	最大转矩 N.m
BLS86-200W-1230	12	200	3000	20.82	0.635	3300	<6.21A	1.92
BLS86-200W-2430	24	200	3000	10.41	0.635	3300	<4.12A	1.92
BLS86-200W-3630	36	200	3000	6.93	0.635	3300	<2.51A	1.92
BLS86-200W-4830	48	200	3000	5.2	0.635	3300	<1.62A	1.92
BLS86-200W-31030	310	200	3000	0.8	0.635	3300	<0.41A	1.92

Diagram

4.12A 24V 3000rpm 200W Three Phase Brushless Motor For Robot
