0.134HP 100W 0.31NM Brushless BLDC Motor 12V 24V With Controller

Ask Lasest Price
Brand Name :	SECORE
Model Number :	BLS42-50W
Certification :	CE ROHS
Price :	Negotiated The Price
Payment Terms :	T/T, D/A
Supply Ability :	8000pcs per month
Delivery Time :	7-10 working days
MOQ :	1 PC

Add to Cart

Product Details
Company Profile

0.134HP 100W 0.31NM Brushless BLDC Motor 12V 24V With Controller

0.134HP 100W 0.31N.M BLDC Motor With Controller, 12V/24V Brushless Dc Motor Kit

Secore Motor specializes in the production and sales of various DC brush & brushless motors, provides high quality customer service, and accepts customization of motors with special parameters. Welcome to enquire.

Feature:

1. high power ( 5W -7KW )
2. diameter 24mm to 180mm, round and square shape
3. Fast lead time with sufficient material stock
4. matching driver/controller with stable high performance
5. IP65 protection ranking can be reached
6. long lifetime more than 10K hours continuous running
7. high energy efficiency more than 90% is available

Specification / Continuous rating for 60mm diameter,100W 3000rpm BLDC motor

Model number	Voltage V	Power W	Rated speed rpm	Rated current A	Rated torque N.m	No-load speed rpm	No-load current A	Peak Torque N.m
电机型号	电压 ( V )	功率 ( W )	额定转速 ( rpm)	额定电流( A )	额定转矩( N.m)	空载转速( rpm)	空载电流 ( A )	最大转矩 (N.m)
BLS57-100W-1230	12	100	3000	10.43	0.31	3300	<1.21A	0.971
BLS57-100W-2430	24	100	3000	5.22	0.31	3300	<0.82A	0.971
BLS57-100W-3630	36	100	3000	3.48	0.31	3300	<0.63A	0.971
BLS57-100W-4830	48	100	3000	2.61	0.31	3300	<0.41A	0.971
BLS57-100W-31030	310	100	3000	0.41	0.31	3300	<0.31A	0.971

Why Does BLDC Motor Need to equip with Controller?

Reason 1: Brushless dc motor is a permanent magnet brushless synchronous motor, its functional parameters must be used with the brushless motor controller, in order to use normally.

Reason 2: Brushless DC motor has no brush and commutator, there must be an electronic commutator to keep the rotation. The electronic commutator is composed of six power MOSFET transistors, which are controlled by a brushless motor controller. At the same time, the controller can also control the starting and stopping of the motor, forward and backward, speed regulation, over-voltage, over-current and under-voltage protection. So it is necessary to have a brushless motor controller, even if the brushless DC motor is powered, it's still useless.

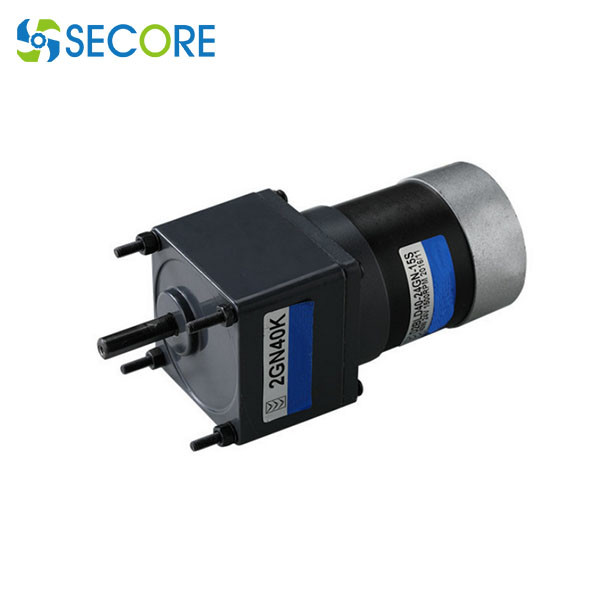

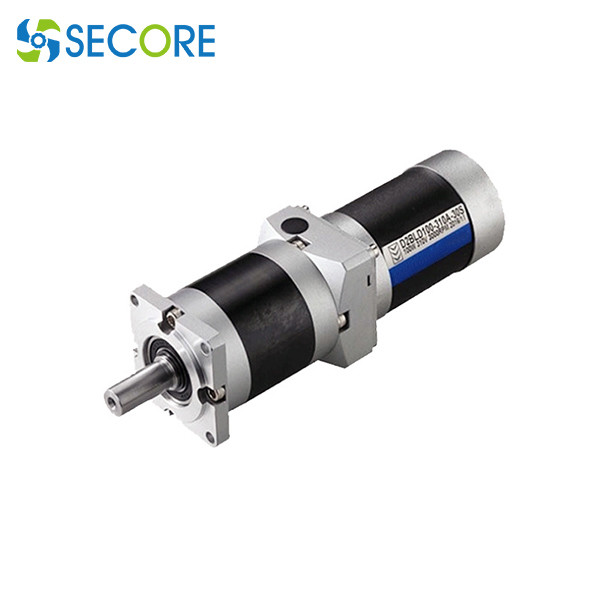

Brushless dc motor with gear reducer

0.134HP 100W 0.31NM Brushless BLDC Motor 12V 24V With Controller
