    200W 1/4HP Brushless Dc Gear Motor 80mm 3000rpm 24V 0.63NM

    Ask Lasest Price
    Brand Name : SECORE
    Model Number : BLG80-200W
    Certification : CE ROHS
    Price : Negotiated The Price
    Payment Terms : T/T, D/A
    Supply Ability : 8000pcs per month
    Delivery Time : 7-10 working days
    MOQ : 1 PC
    • Product Details
    • Company Profile

    200W 1/4HP Brushless Dc Gear Motor 80mm 3000rpm 24V 0.63NM

    200W 1/4HP Brushless Dc Gear Motor, 80mm 3000rpm 24V 0.63N.M BLDC Geared Motor with high energy efficiency


    Secore High Torque Brushless DC Motor Kits ( configure 3-phase BLDC motor + matching controller + gearbox + brake optional ) , are 12V / 24V / 48V brushless DC motor coming with power 30W to 7KW, 72V / 96V can be customed, size ranging from 24mm to 180mm round and square shape, speed 1000rpm to 3000rpm, peak toruqe up to 110N.m.


    Specification / Continuous rating for 80mm diameter,200W 3000rpm BLDC motor

    Model numberVoltage VPower WRated speed
    rpm
    Rated current
    A
    Rated torque
    N.m
    No-load
    speed rpm
    No-load
    current A
    Peak Torque
    N.m
    电机型号电压 V功率 W额定转速 rpm额定电流 A额定转矩 N.m空载转速 rpm空载电流 A最大转矩 N.m
    BLS86-200W-123012200300020.820.6353300<6.21A1.92
    BLS86-200W-243024200300010.410.6353300<4.12A1.92
    BLS86-200W-36303620030006.930.6353300<2.51A1.92
    BLS86-200W-48304820030005.20.6353300<1.62A1.92
    BLS86-200W-3103031020030000.80.6353300<0.41A1.92

    Allowable Torque with gearbox


    Gearhead typeGear#Gear ration
    Planetary gearheadPLS0601 level: 4, 5, 7, 10
    2 level: 16, 20, 25, 28
    3 level: 80, 100, 125, 140, 175, 200, 250

    Gear ratio45710162025283540507080100125140175200250
    Rated speed ( rpm )7516004293001881501201078675604338302421171512
    Rated output torque ( N.m )2.43.14.36.19.612.115.116.8212429.921.537.537.541.137.541.137.541.1
    Peak output torque ( N.m )7.39.212.817.128.735.944.950.462.960.166.143.175.175.182.175.182.175.182.1
    Moment of Nertia (kgcm2)0.0940.0920.0910.0910.0940.0920.0920.0910.0910.0910.0910.0910.0920.0920.0920.0910.0910.0910.091

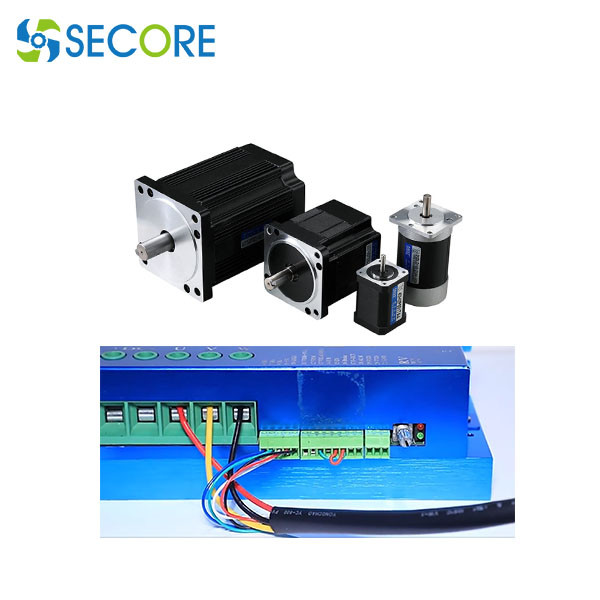

    Brushless dc motor with gear reducer, controller
